Steering Angle Sensor Module Connector - C222

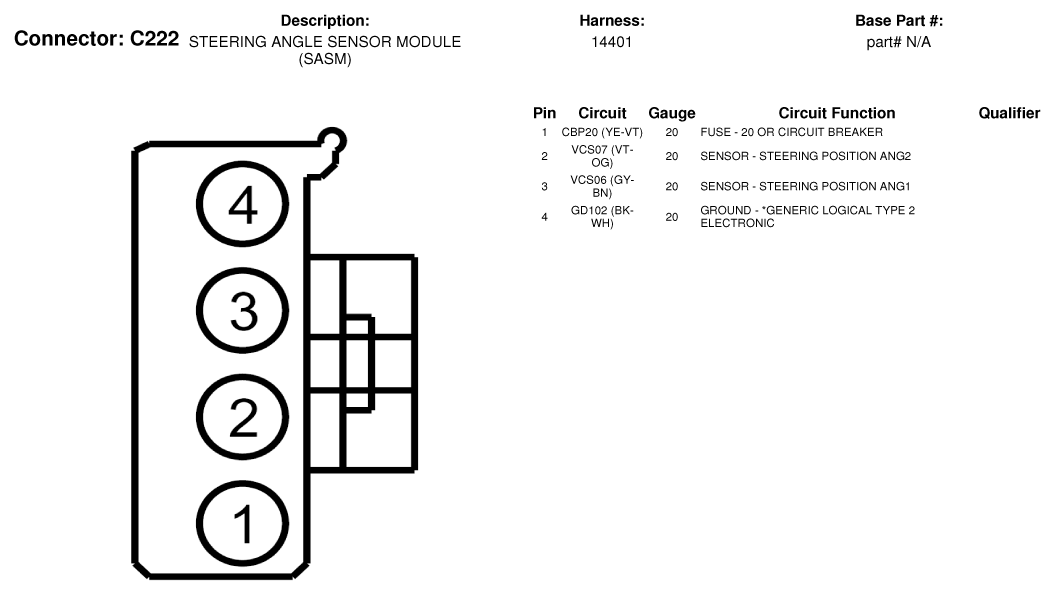

Fig 1: Steering Angle Sensor Module Connector End View (C222)
G07336894Courtesy of FORD MOTOR CO.
