Ignition Switch: Schematic

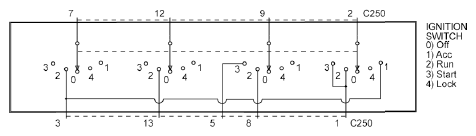

Fig 1: Identifying Ignition Switch - Schematic
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
