Multifunction Switch, Turn Portion: Schematic

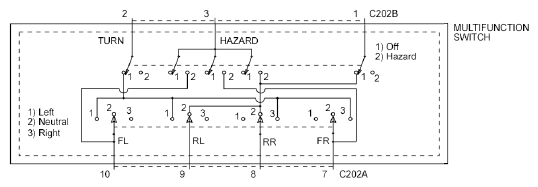

Fig 1: Identifying Multifunction Switch, Turn Portion - Schematic
G07336814Courtesy of FORD MOTOR CO.
