Steering Column - Manual Transmission: Notes
SPECIAL TOOL(S)
| Steering Column Locking Lever Tool Shop Fabricated |
MATERIAL
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |

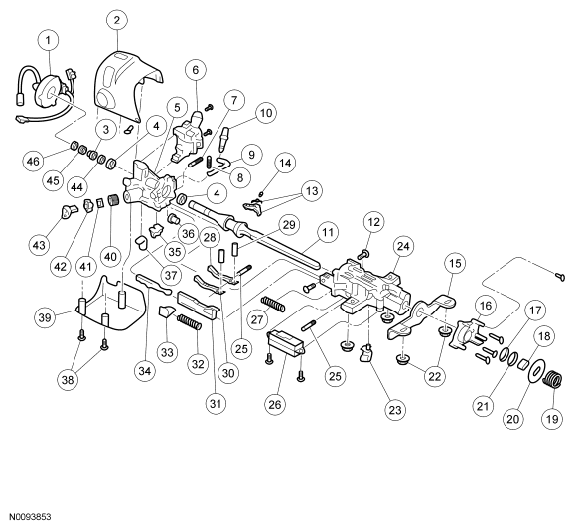

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A664 | Clockspring |
| 2 | 3530 | Upper steering column shroud |
| 3 | 3518 | Steering column upper bearing sleeve |
| 4 | 3517 | Steering column upper (small) and lower (large) bearings |
| 5 | 3511 | Ignition lock cylinder housing |
| 6 | 13K359 | Multifunction switch |
| 7 | N808114 | Pin |
| 8 | N805857 | Steering column release lever pin |
| 9 | 3D544 | Steering column release lever |
| 10 | 3F609 | Tilt wheel handle and shank |
| 11 | 3D657 | Steering column shaft |
| 12 | N806582 | Ignition lock cylinder housing screw (2 required) |
| 13 | 3F527 | Lever assembly |
| 14 | 3F530 | Pin |
| 15 | 3676 | Steering column instrument panel bracket |
| 16 | 3D681 | Steering column lower bearing retainer |
| 17 | 3518 | Steering column lower bearing sleeve |
| 18 | 3L539 | Steering column lower bearing tolerance ring |
| 19 | 3C674 | Steering column lower bearing spring |
| 20 | 3C131 | Sensor ring |
| 21 | 3517 | Steering column lower bearing |
| 22 | N806423 | Steering column support bracket nuts (4 required) |
| 23 | 14A163 | Wiring harness retainer |
| 24 | 3F723 | Steering actuator housing |
| 25 | 3B663 | Steering column lock lever pins |
| 26 | 11572 | Ignition switch |
| 27 | 3D655 | Steering column position spring |
| 28 | 3D653 | LH steering column locking lever |
| 29 | 3B768 | Steering column position lock spring |
| 30 | 3B662 | RH steering column locking lever |
| 31 | 3E715 | Lower steering column lock actuator |
| 32 | 3E696 | Steering column lock spring |
| 33 | 3E691 | Steering column shaft lock pawl |
| 34 | 3E723 | Upper steering column lock lever actuator |
| 35 | 3E695 | Steering column lock cam |
| 36 | 3D656 | Steering column tilt flange bumper |
| 37 | 14A163 | Wiring harness retainer |
| 38 | 391727 | Shroud screw (3 required) |
| 39 | 3530 | Steering column shroud |
| 40 | 3E717 | Ignition lock cylinder gear |
| 41 | 3E700 | Ignition lock cylinder bearing |
| 42 | 3C610 | Ignition lock cylinder bearing retainer |
| 43 | 11582 | Ignition lock cylinder |
| 44 | 3L539 | Steering column upper bearing tolerance ring |
| 45 | 3520 | Steering column upper bearing spring |
| 46 | 3C610 | Steering column upper bearing snap ring |
