Steering Column Shaft: Notes

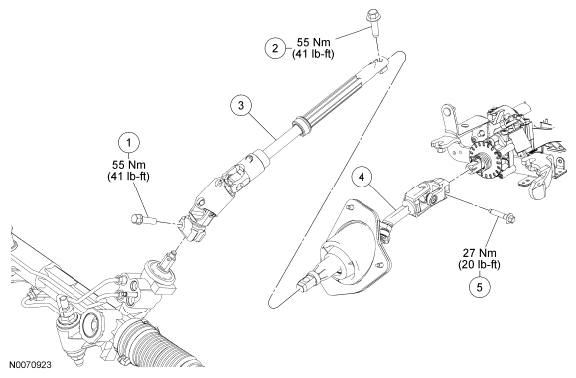

Fig 1: Exploded View Of Steering Column Shaft With Torque Specifications
G06185590Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N801614 Lower steering column shaft-to-steering gear bolt
2 N801614 Lower steering column shaft-to-upper steering column shaft bolt
3 3C662 Lower steering column shaft
4 3E751 Upper steering column shaft
5 N808684 Upper steering column shaft-to-steering column bolt
