Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module









Removal and Installation

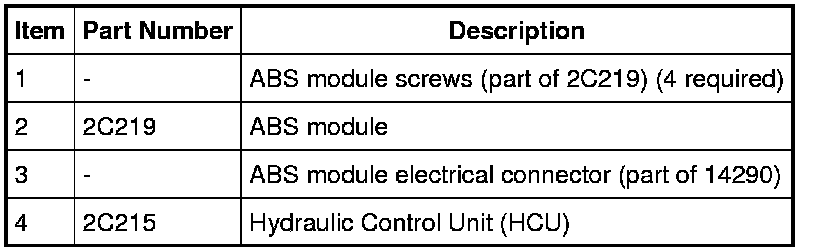

1. Remove the Hydraulic Control Unit (HCU). For additional information, refer to Hydraulic Control Unit (HCU) Service and Repair.

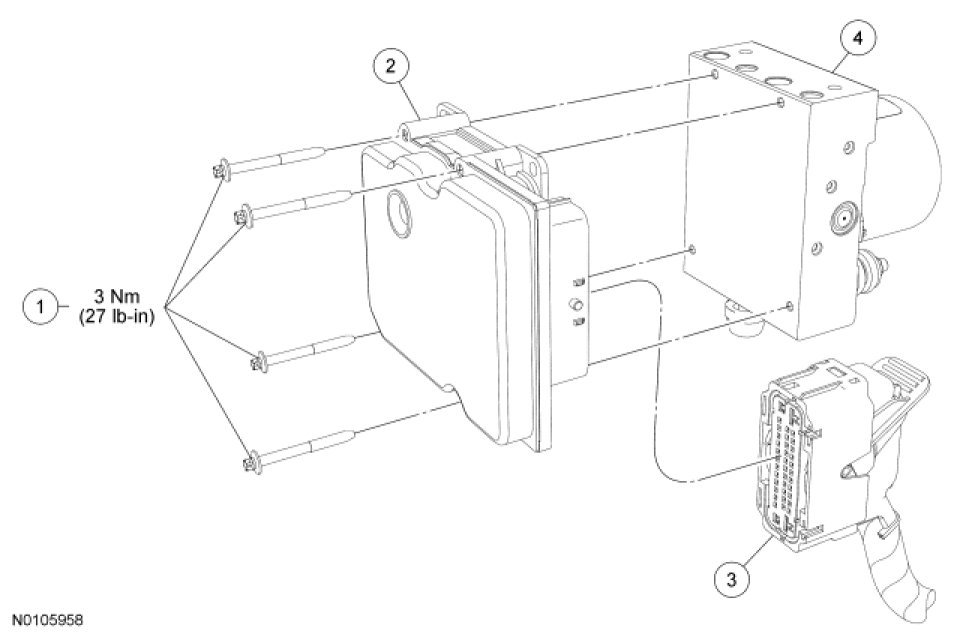

2. Remove the 4 ABS module screws.
- To install, tighten to 3 Nm (27 lb-in).

3. Remove the ABS module from the HCU.

4. To install, reverse the removal procedure.
