Antenna - Keyless Entry: Service and Repair

Luggage Compartment Intelligent Access (IA) Antenna

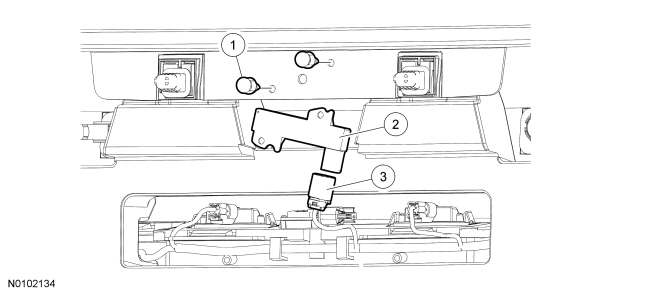

NOTE: Picture shows the inside of the rear bumper cover.









Removal and Installation

1. Remove the rear bumper cover. For additional information, refer to Bumpers Service and Repair.

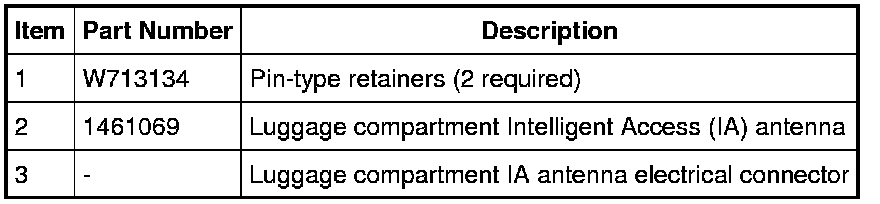

2. Remove the 2 pin-type retainers.

3. Disconnect the luggage compartment IA antenna electrical connector, and remove the luggage compartment IA antenna.

4. To install, reverse the removal procedure.
