Interior Lighting Module: Service and Repair

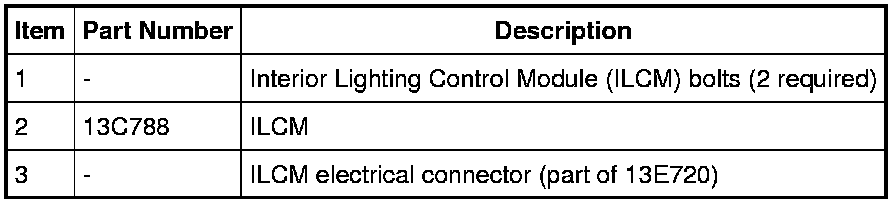

Interior Lighting Control Module (ILCM)

Removal and Installation

1. Remove the RH instrument panel finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - RH.

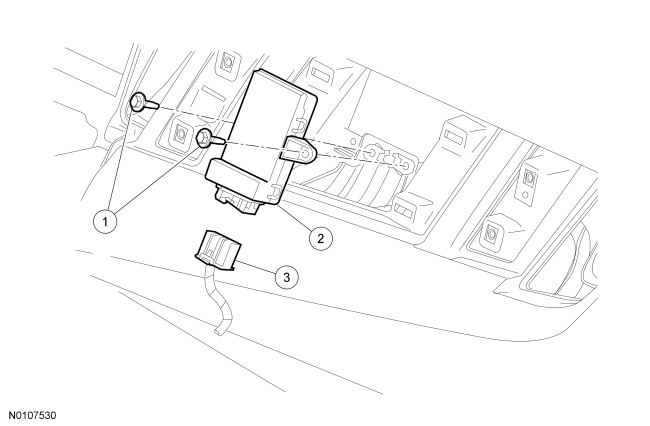

2. Remove the 2 bolts and the ILCM.

3. To install, reverse the removal procedure.
