Intake Air Temperature (IAT) Sensor




Intake Air Temperature (IAT) Sensor









Removal and Installation

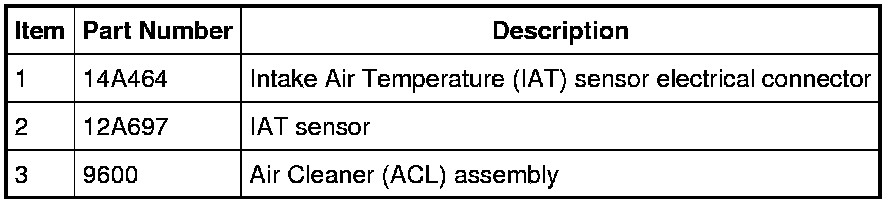

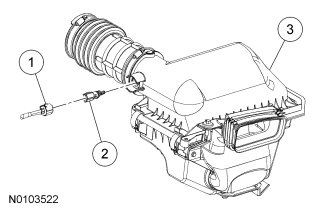

1. Disconnect the Intake Air Temperature (IAT) sensor electrical connector.

2. Remove the IAT sensor.

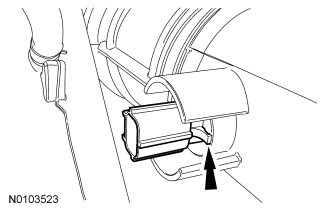

- Lift the tab and turn the IAT sensor counterclockwise to remove.





3. To install, reverse the removal procedure.
- Make sure the IAT sensor tab is fully seated during installation.
