Antenna Control Module: Service and Repair

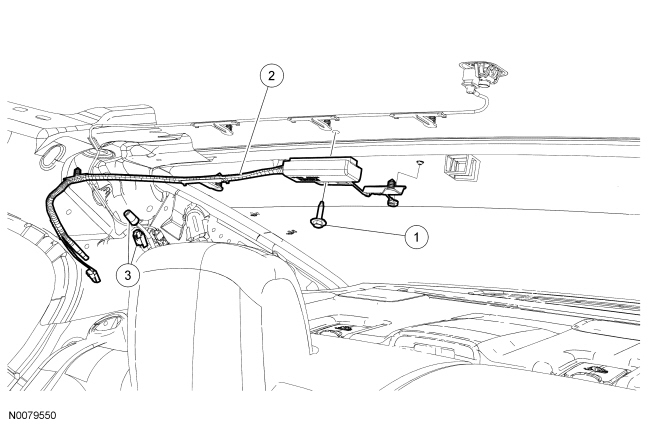

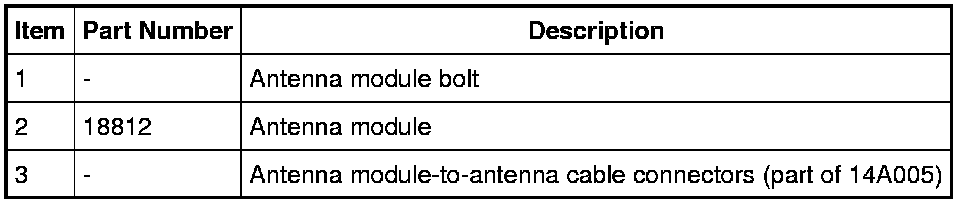

Antenna Module









Removal and Installation

1. Remove the headliner. For additional information, refer to Interior Trim and Ornamentation Service and Repair.

2. Disconnect the antenna module-to-antenna cable connectors.

3. Remove the bolt and the antenna module.

4. To install, reverse the removal procedure.
