Rain Sensor

Rain Sensor

1. Remove the Headlamp Control Module 2 (HCM-2). For additional information, refer to Exterior Lighting Headlamp Control Module 2 (HCM-2).

2. NOTE: Lightly press the rain sensor against the windshield to relieve the clip tension.

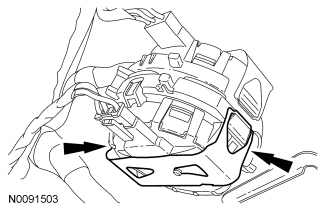

Release the 2 rain sensor retaining clips and remove the rain sensor.





3. To install, reverse the removal procedure.
- Prior to installing the rain sensor, the windshield glass area of the rain sensor must be cleaned.
