Windshield Washer Switch: Service and Repair

Steering Column Multifunction Switch

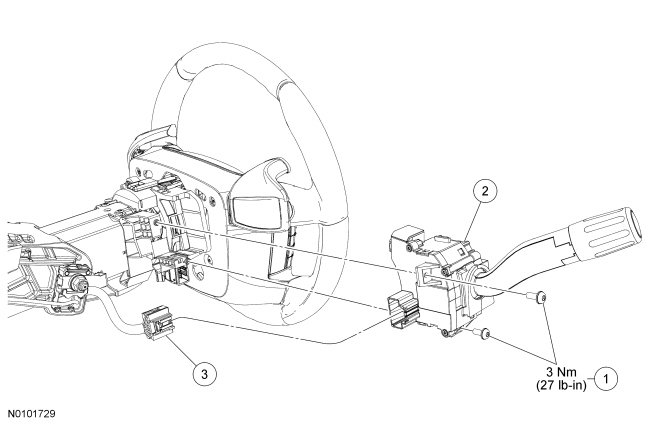

Removal and Installation

1. Remove the steering column shrouds. For additional information, refer to Steering Column Steering Column Shroud.

2. Disconnect the multifunction switch electrical connector.

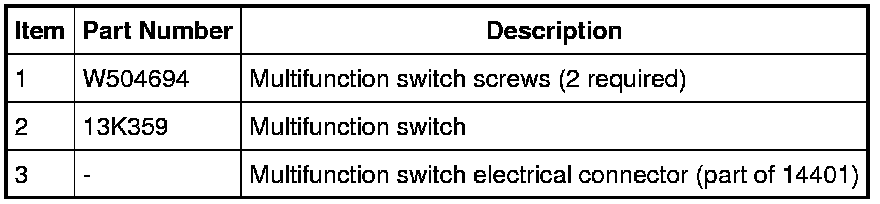

3. Remove the 2 screws and the multifunction switch.
- To install, tighten to 3 Nm (27 lb-in).

4. To install, reverse the removal procedure.
