Driver Seat Module (DSM): Notes
SPECIAL TOOL(S)
| Heavy-Duty Riveter 501-D011 (D80L-23200-A) |
|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

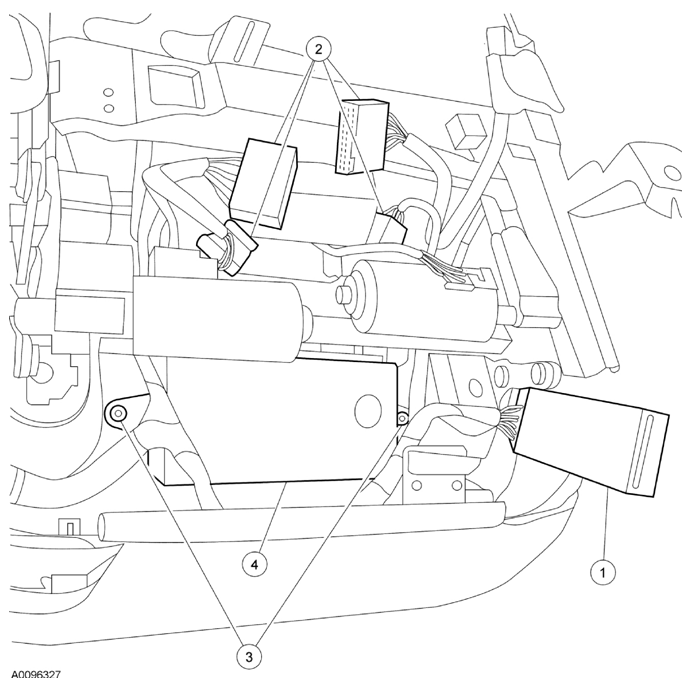

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 14C724 | Heated seat module (if equipped) |
| 2 | - | Driver Seat Module (DSM) electrical connectors (part of 14A699) |
| 3 | - | DSM rivets (2 required) |
| 4 | 14C708 | DSM |
