Heads Up Display Module Connector - C2395

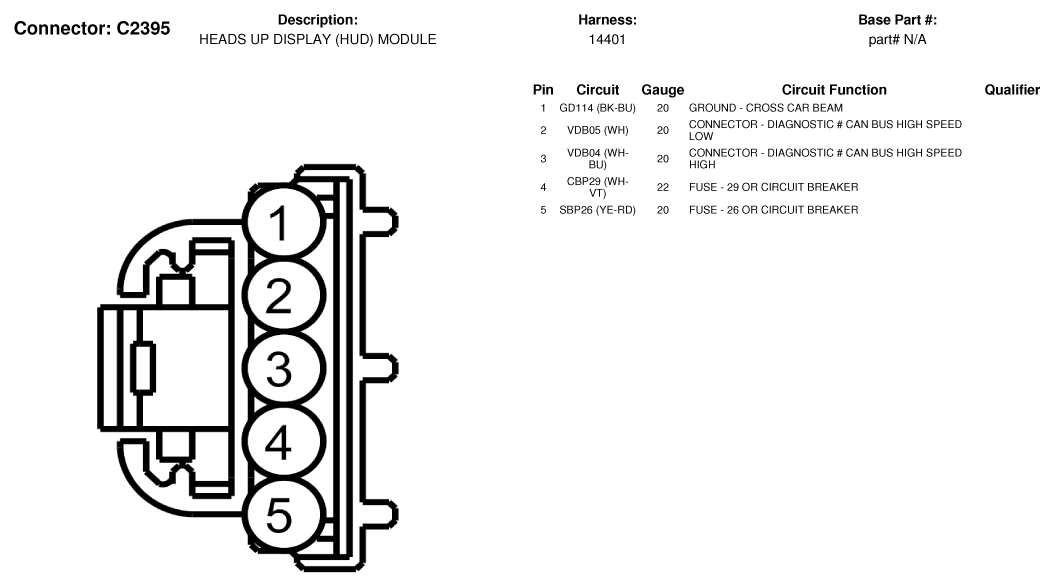

Fig 1: Heads Up Display Module Connector End View (C2395)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
