Restraints Control Module Connectors - C310A

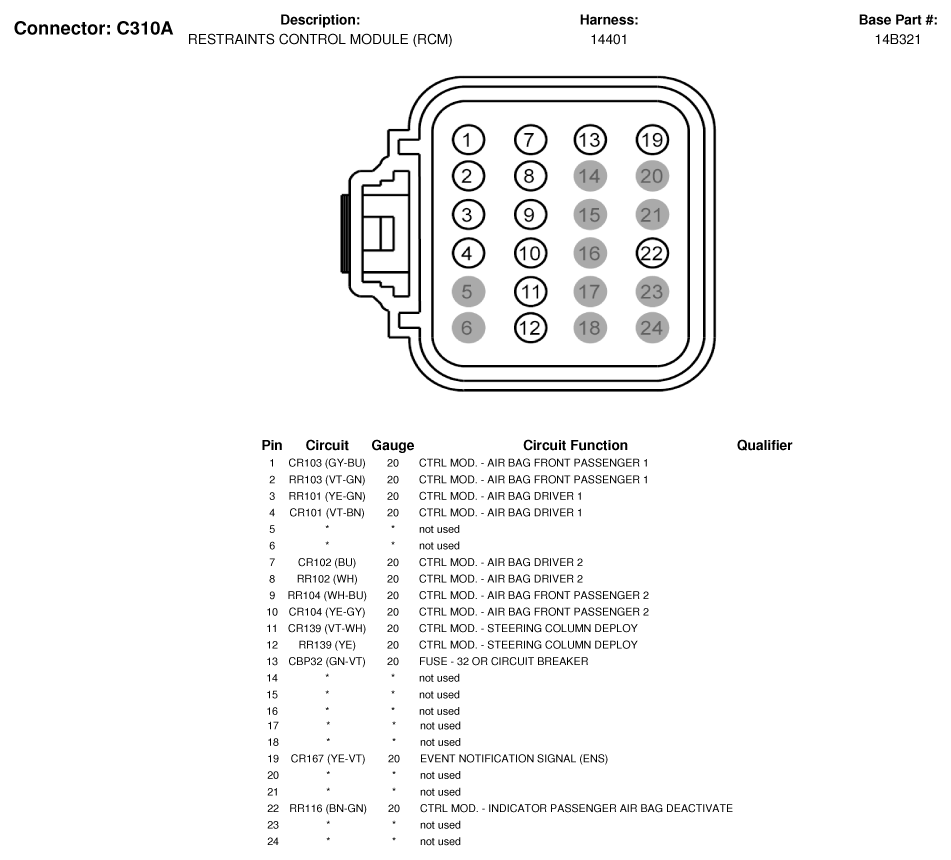

Fig 1: Restraints Control Module Connector End View (C310A)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
