Side Obstacle Detection Control Module - Right Connector - C4370

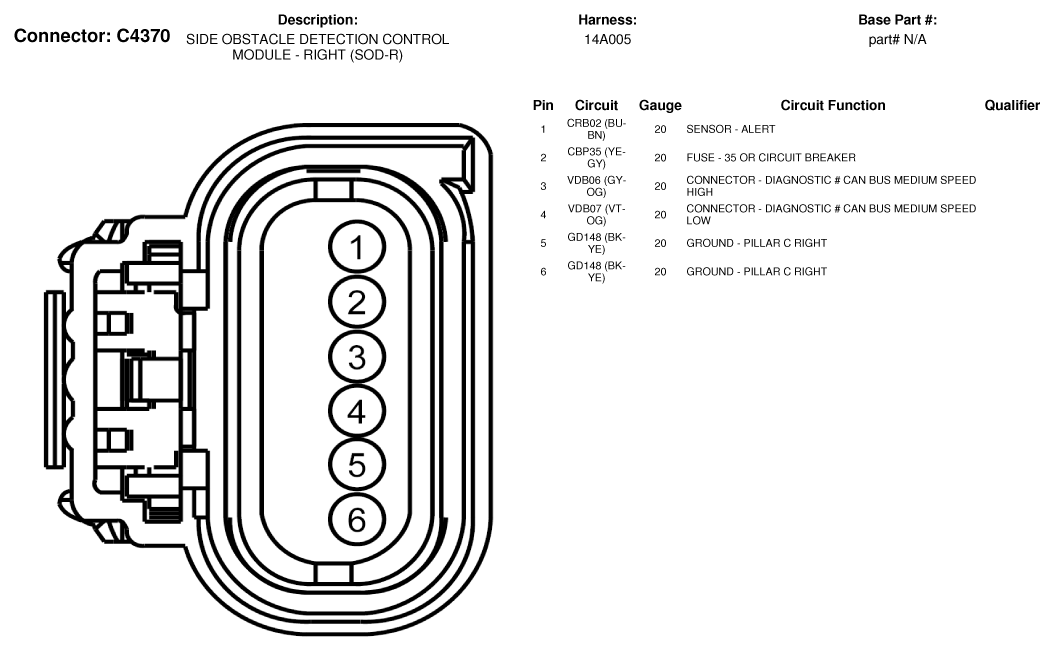

Fig 1: Side Obstacle Detection Control Module - Right Connector End View (C4370)
G07340245Courtesy of FORD MOTOR CO.
