Headlamp Control Module (HCM): Notes
WARNING: This page is about a different car, the 2010 Lincoln MKX and 2010 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The Headlamp Control Module (HCM) can be accessed from under the vehicle.

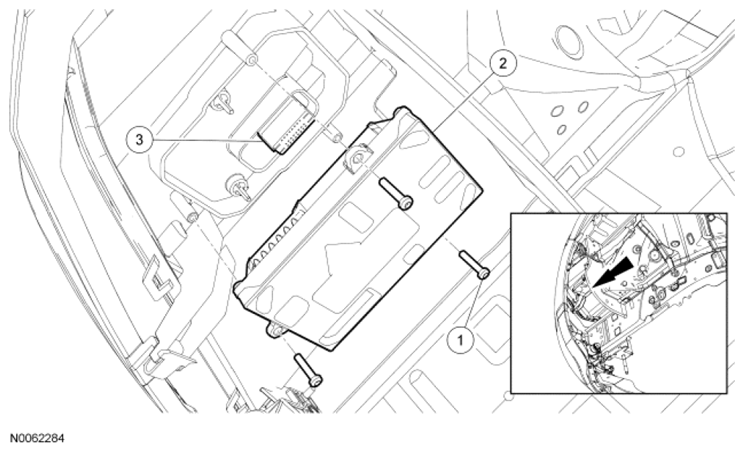

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
- |
Headlamp Control Module (HCM) screws (3 required) (part of 13005) |
| 2 |
13C148 |
HCM |
| 3 |
- |
HCM
electrical connector (part of 13005) |
