Memory Set Switch Connector - C3395

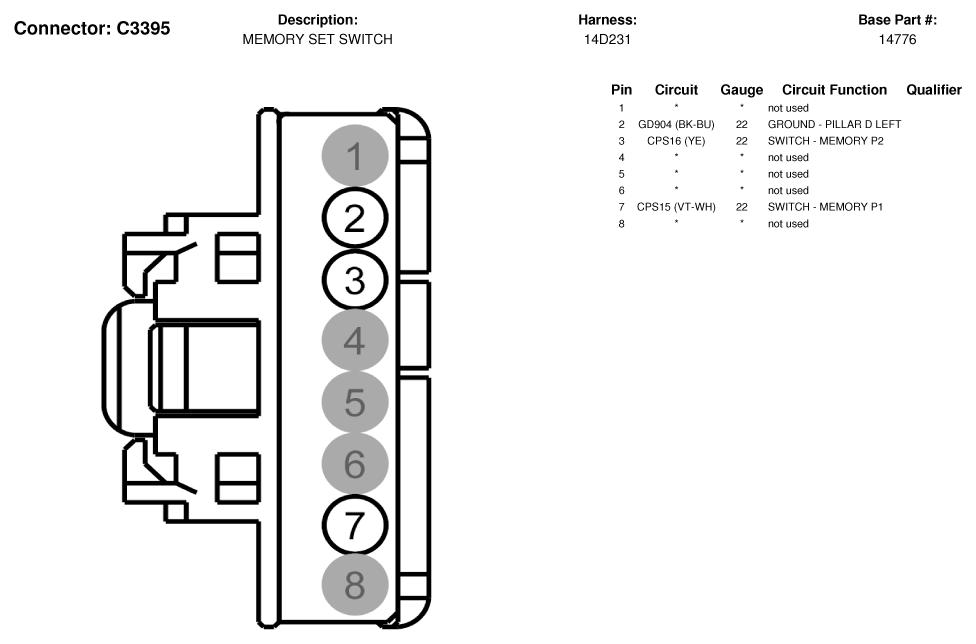

Fig 1: Memory Set Switch Connector End View (C3395)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
