Passenger Seat Occupant Classification System (OCS) Weight Sensor Bolt System Identification

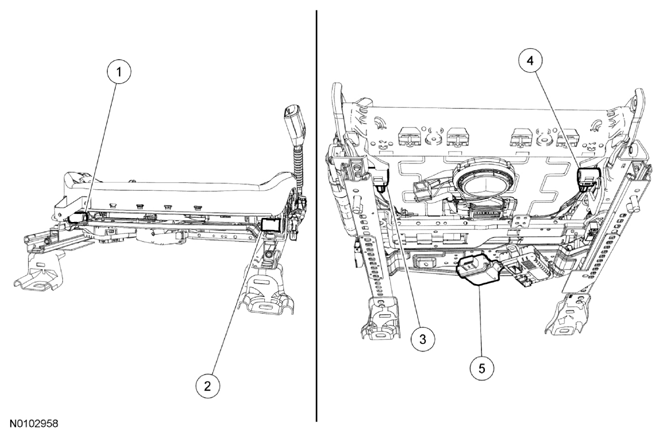

Fig 1: Identifying Components Of Passenger Seat OCS Weight Sensor Bolt System Identification
G07812496Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Occupant Classification System (OCS) weight sensor bolt A (part of 61710)
2 - OCS weight sensor bolt D (part of 61710)
3 - OCS weight sensor bolt C (part of 61710)
4 - OCS weight sensor bolt B (part of 61710)
5 14B056 Occupant Classification System Module (OCSM)
