Hydraulic Control Unit (HCU): Notes
SPECIAL TOOL(S)
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

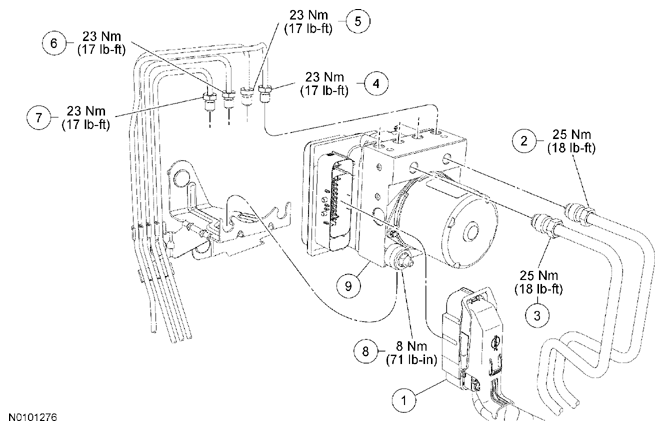

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS electrical connector (part of 14A005) |
| 2 | - | Master cylinder secondary brake tube-to-Hydraulic Control Unit (HCU) fitting (part of 2C360) |
| 3 | - | Master cylinder primary brake tube-to-HCU fitting (part of 2C360) |
| 4 | - | LH front brake tube-to-HCU fitting (part of 2C296) |
| 5 | - | RH rear brake tube-to-HCU fitting (part of 2C296) |
| 6 | - | LH rear brake tube-to-HCU fitting (part of 2C296) |
| 7 | - | RH front brake tube-to-HCU fitting (part of 2C296) |
| 8 | 3B676 | Bracket-to-HCU nut (2 required) |
| 9 | 2C405 | HCU |
