Special Tool(s)

WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G07783990
Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

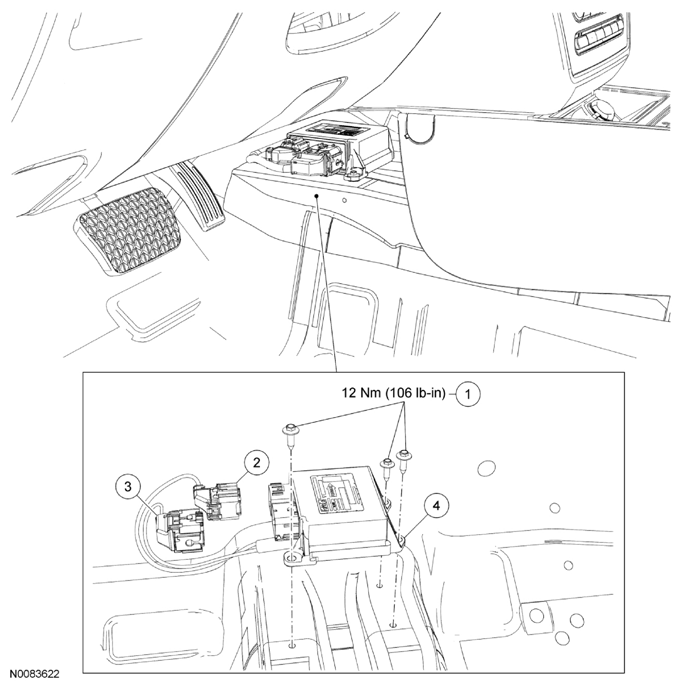

Fig 1: Restraints Control Module Replacement Components With Torque Specifications
G07783991Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W707722 Restraints Control Module (RCM) bolts (3 required)
2 - RCM small connector (part of 14A005)
3 - RCM large connector (part of 14A005)
4 14B321 RCM
