Voice Activation Module: Service and Repair

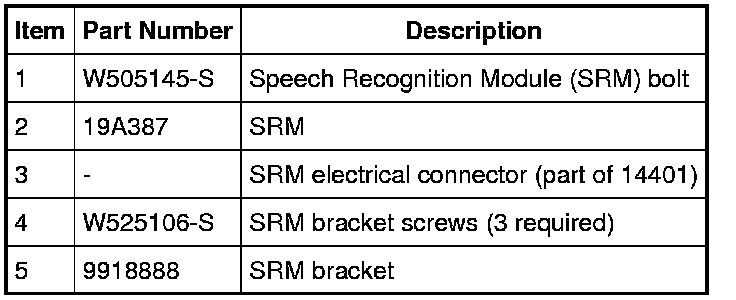

Speech Recognition Module (SRM)









Removal and Installation

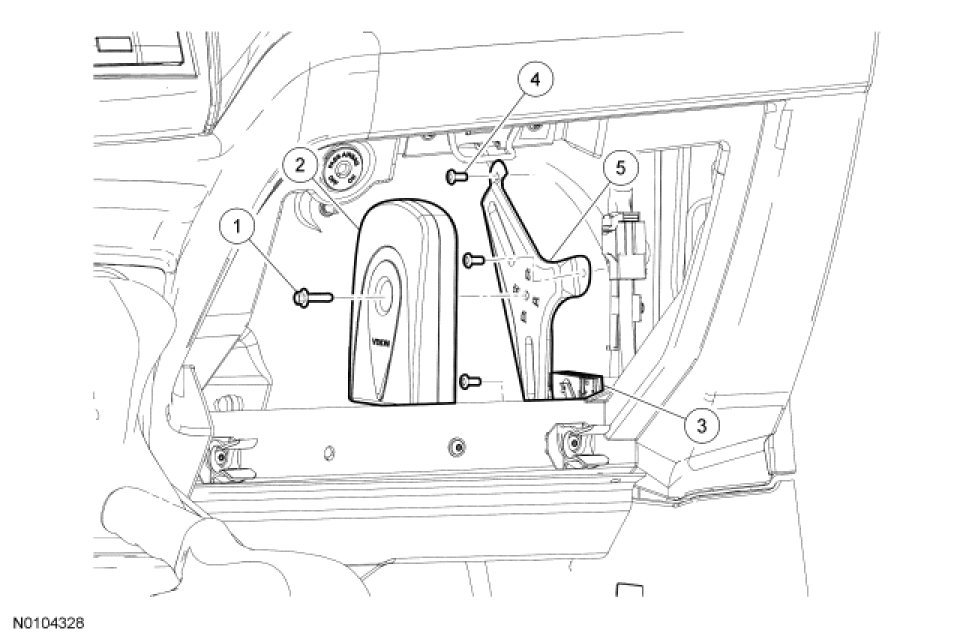

1. Lower the glove compartment completely.

2. Remove the bolt and the Speech Recognition Module (SRM).
- Disconnect the electrical connector.

3. If removing the bracket, remove the 3 screws and the SRM bracket.

4. To install, reverse the removal procedure.
