Parking Assist Control Module: Service and Repair

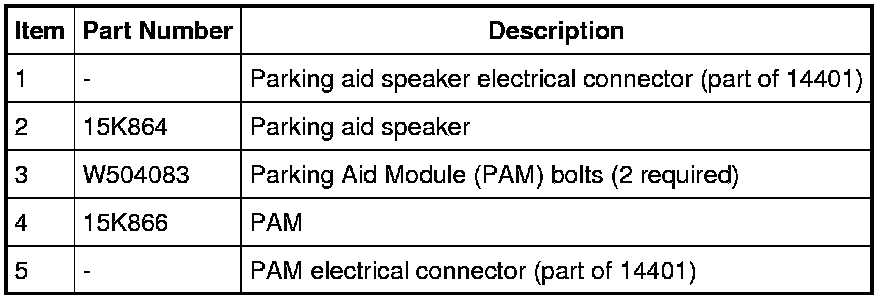

Parking Aid Module (PAM)

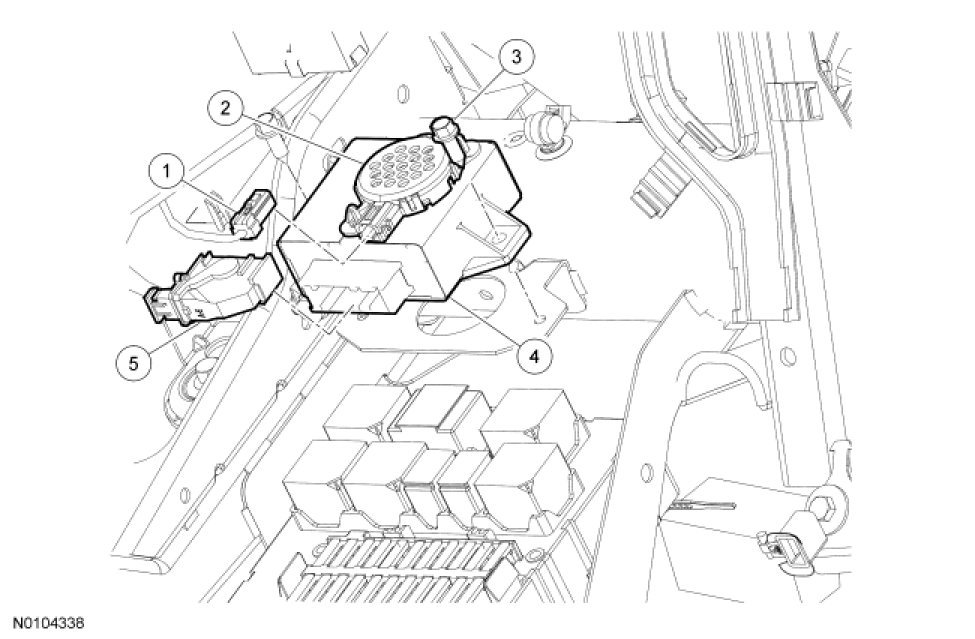

Removal and Installation

1. Remove the Central Junction Box (CJB) fuse panel cover.

2. If replacing the Parking Aid Module (PAM) only, proceed as follows:
- Disconnect the electrical connectors.

- Remove the 2 bolts and the PAM.

3. If replacing the parking aid speaker only, proceed as follows:
- Disconnect the parking aid speaker electrical connector.

- Disengage the parking aid speaker clips.

- Remove the parking aid speaker.

4. To install, reverse the removal procedure.
