Special Tool(s)

SPECIAL TOOL REFERENCE

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

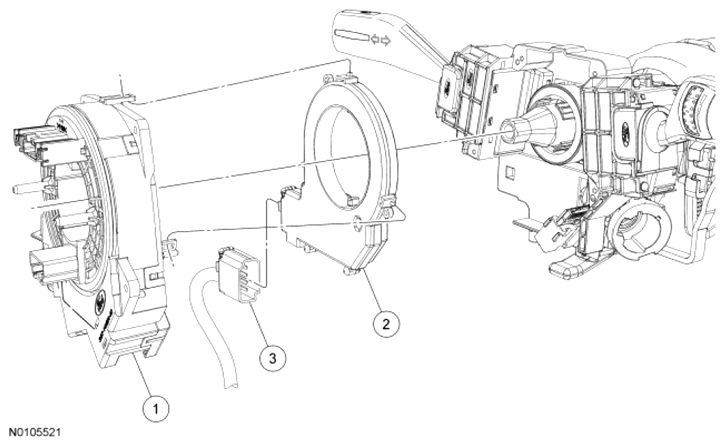

Fig 1: Identifying Stability Control Sensor Cluster Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	14A664	Clockspring
2	3F818	Steering Angle Sensor Module (SASM)
3	-	SASM electrical connector (part of 14401)
