Wheel Speed Sensor - Front: Notes

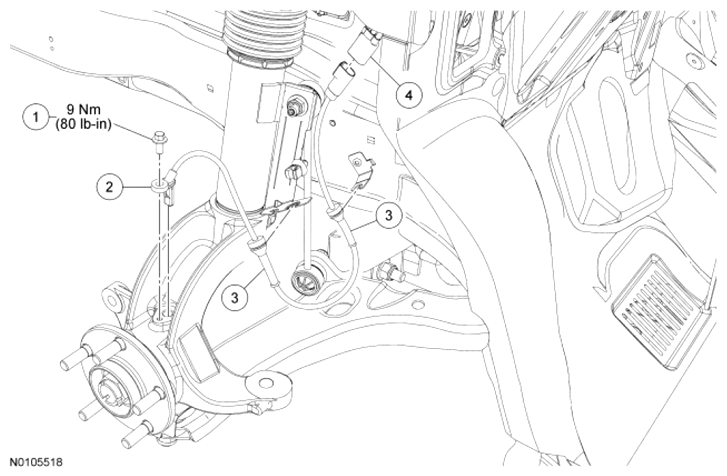

Fig 1: Wheel Speed Sensor Replacement Components With Torque Specifications - (Front)
G07495260Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W500012 Wheel speed sensor bolt
2 2C204 Wheel speed sensor
3 - Wheel speed sensor retainer (part of 2C204)
4 - Wheel speed sensor electrical connector (part of 14290)
