Steering Angle Sensor Module Connector - C226

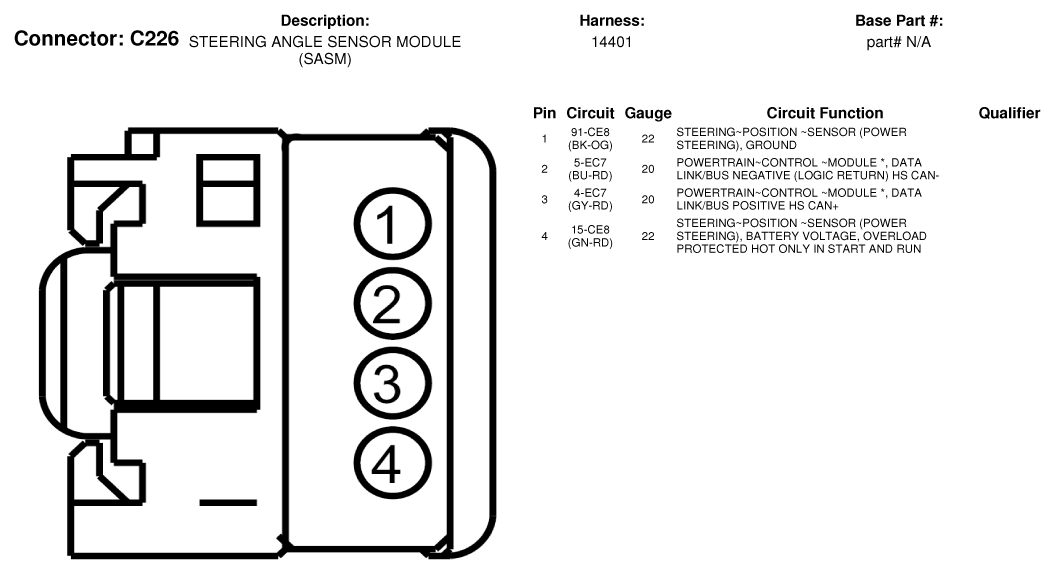

Fig 1: Steering Angle Sensor Module Connector End View (C226)
G07337286Courtesy of FORD MOTOR CO.
