Telematics Module Connector - C2413

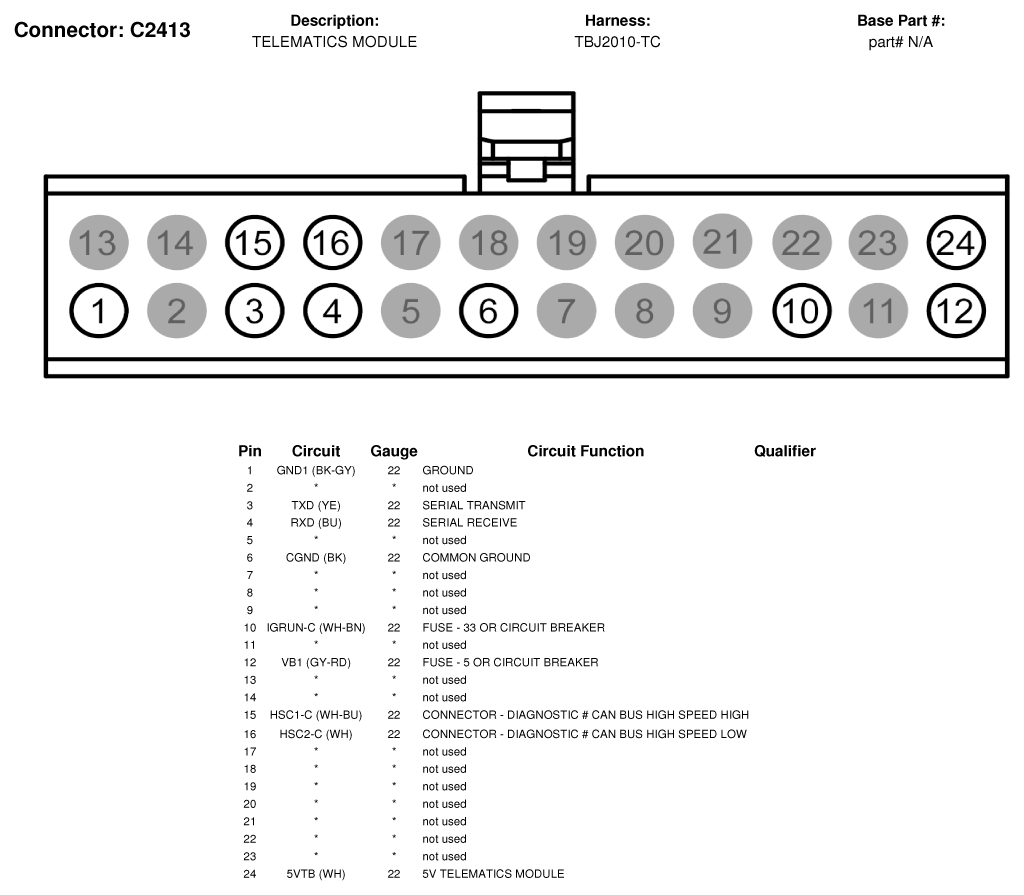

Fig 1: Telematics Module Connector End View (C2413)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
