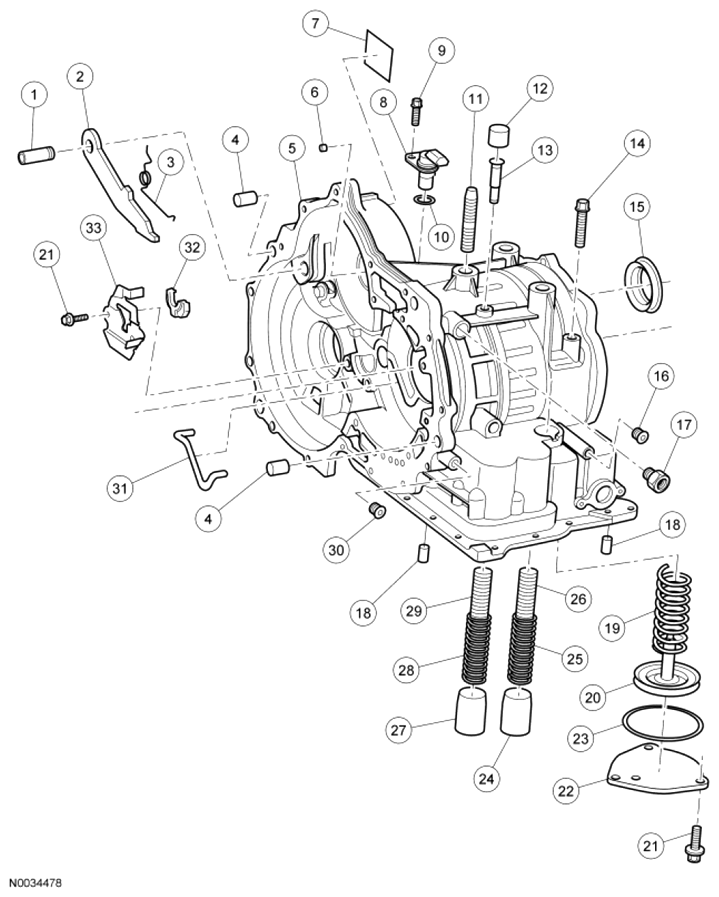

Case Assembly
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D071 | Parking pawl shaft |
| 2 | 7A441 | Parking brake pawl |
| 3 | 7D070 | Pawl return spring |
| 4 | W706892-S300 | Case dowels |
| 5 | 7005 | Case |
| 6 | 7H389 | Case orifice plug |
| 7 | 7B148 | Service identification tag |
| 8 | 7M101 | Turbine Shaft Speed (TSS) sensor |
| 9 | W500214-S300 | Bolt M6-1 x 20 |
| 10 | W706316-S300 | O-ring |
| 11 | W703961-S309 | Case stud |
| 12 | 7L282 | Rubber vent cap |
| 13 | 7A246 | Breather tube |
| 14 | 7F206 | Overdrive (O/D) band anchor stud |
| 15 | 1177 | Differential seal |
| 16 | - | 1/8-27 Hex socket |
| 17 | - | Connector 1/4 x 5/8 x 22.9 |
| 18 | 7B362 | Case dowel pins |
| 19 | 7D028 | Servo piston return spring |
| 20 | 7D021 | Intermediate and overdrive servo piston and seal assembly |
| 21 | W500214-S300 | Screws M6-1 x 20 |
| 22 | 7D027 | Intermediate O/D band servo cover |
| 23 | 7D024 | Intermediate O/D servo cover seal |
| 24 | 7F251 | Neutral/drive accumulator piston |
| 25 | 7G300 | Neutral/drive shift accumulator outer spring |
| 26 | 7G395 | Neutral/drive shift accumulator inner spring |
| 27 | 7F251 | 1-2 shift accumulator piston |
| 28 | 7G267 | 1-2 shift accumulator outer spring |
| 29 | 7G326 | 1-2 shift accumulator inner spring |
| 30 | W701515-S309 | Line tap plug |
| 31 | 7N148 | Oil transfer tube |
| 32 | 7G101 | Park pawl actuating abutment |
| 33 | 7D419 | Park pawl actuating plate |
