Main Control Assembly

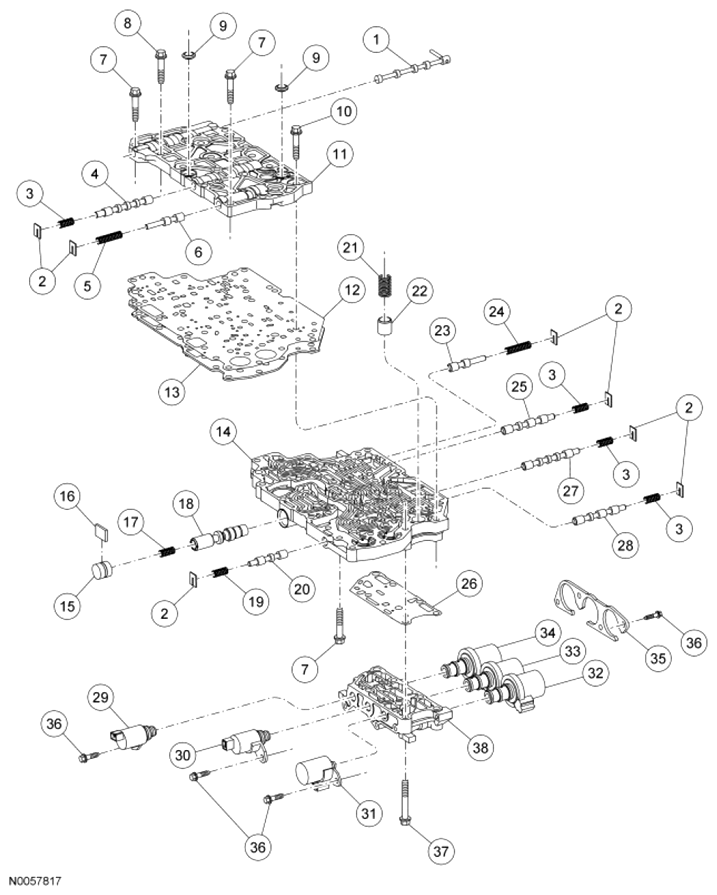

Fig 1: Exploded View Of Main Control Valve Body Components

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	7D142	Valve assembly - manual control
2	7F194	Plates - spring retainer (7 required)
3	7H140	Springs - bypass clutch control (4 required)
4	7G179	Valve - bypass clutch control
5	7K720	Spring - modulation valve
6	7G408	Valve - line pressure modulator
7	W500100	Bolts M6 x 30 (3 required)
8	W705271	Bolt M6 x 63 (5 required)
9	7N266	Seals - valve body
10	W705271	Bolt M6 x 60 (5 required)
11	7A092	Body - control valve upper
12	7C155	Gasket - control valve body
13	7A008	Gasket - control body separator
14	7A101	Body - control valve lower
15	7R294	Stop - main regulator valve
16	7F445	Clip - throttle valve plunger sleeve
17	7A270	Spring - main fluid pressure regulator valve
18	7C338	Valve - main fluid pressure regulator
19	7G411	Spring - solenoid regulator valve
20	7H392	Valve - shift solenoid
21	7D400	Spring - intermediate servo accumulator
22	7D398	Piston - intermediate servo accumulator
23	7G408	Valve - converter pressure relief
24	7G316	Spring - converter regulator valve
25	7M040	Valve - lock-up control
26	7Z490	Gasket - solenoid body
27	7G179	Valve - low/reverse shift
28	7M040	Valve - 3-4 shift
29	7H148	Shift Solenoid B (SSB) (on/off) valve
30	7H148	Shift Solenoid A (SSA) (on/off) valve
31	7G383	Main regulator Variable Force Solenoid (VFS) Pressure Control Solenoid A (PCA)
32	7G484	Pulse-Width Modulation (PWM) solenoid valve Shift Solenoid C (SSC)
33	7G484	PWM solenoid valve Shift Solenoid E (SSE)
34	7G484	PWM solenoid valve Shift Solenoid D (SSD)
35	7H185	Bracket - shift control solenoid hold down
36	W500211	Screws M6 x 12 (7 required)
37	W500012	Screw M6 x 14 (2 required)
38	7G391	Body - solenoid shift throttle pressure
