Planetary Assembly: Assembly

Install the lower one-way ring.

Fig 1: Locating Lower One-Way Ring
Courtesy of FORD MOTOR CO.

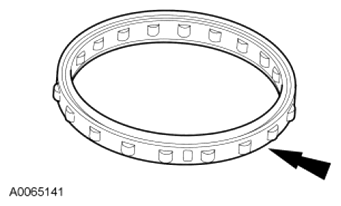

Inspect the rollers and the springs of the OWC .

Fig 2: Locating Rollers And Springs Of OWC
Courtesy of FORD MOTOR CO.

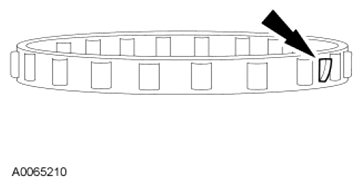

Make sure the low OWC is installed with the tab pointing in the direction as shown in illustration.

Fig 3: Locating Tab Pointing
Courtesy of FORD MOTOR CO.

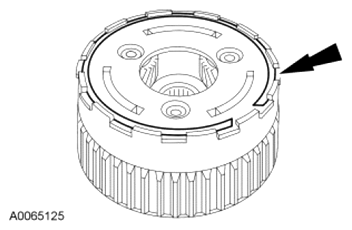

Install the low OWC .

Fig 4: Locating Low OWC Assembly
Courtesy of FORD MOTOR CO.

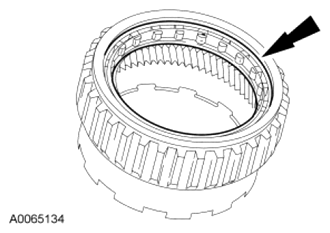

Install the top OWC ring.

Fig 5: Locating Top OWC Ring
Courtesy of FORD MOTOR CO.
Install the top retainer of the OWC .

Fig 6: Locating Top Retainer Of One-Way Clutch
Courtesy of FORD MOTOR CO.

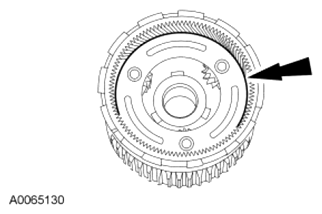

Install the forward planet assembly.

Fig 7: Identifying Forward Planet Assembly
Courtesy of FORD MOTOR CO.
Install the thrust bearing.

Fig 8: Identifying Thrust Bearing
Courtesy of FORD MOTOR CO.
Inspect the front sun gear retaining ring.

Fig 9: Locating Front Sun Gear Retaining Ring
Courtesy of FORD MOTOR CO.

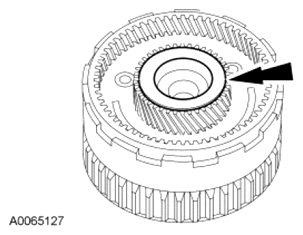

Install the forward planet sun gear.

Fig 10: Identifying Forward Planet Sun Gear
Courtesy of FORD MOTOR CO.

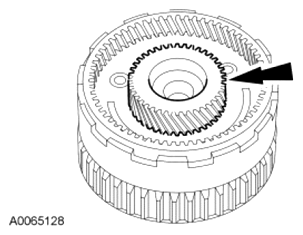

Install the thrust bearing.

Fig 11: Identifying Thrust Bearing
Courtesy of FORD MOTOR CO.
Install the rear planet assembly.

Fig 12: Identifying Rear Planet Assembly
Courtesy of FORD MOTOR CO.
Install the snap ring.

Fig 13: Identifying Snap Ring
Courtesy of FORD MOTOR CO.
