Planetary Assembly: Disassembly

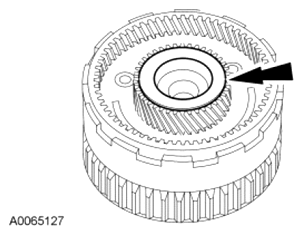

Inspect the planet internal bearing for damage.

Fig 1: Locating Damage Planet Internal Bearing
Courtesy of FORD MOTOR CO.

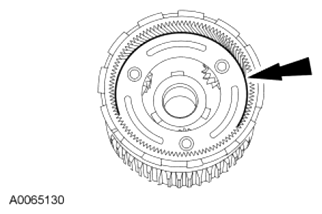

Remove the snap ring.

Fig 2: Identifying Snap Ring
Courtesy of FORD MOTOR CO.
Remove the rear planet assembly.

Fig 3: Identifying Rear Planet Assembly
Courtesy of FORD MOTOR CO.
Remove the thrust bearing.

Fig 4: Identifying Thrust Bearing
Courtesy of FORD MOTOR CO.

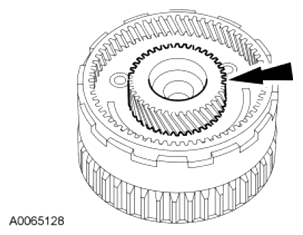

Remove the forward planet sun gear.

Fig 5: Identifying Forward Planet Sun Gear
Courtesy of FORD MOTOR CO.
Remove the thrust bearing.

Fig 6: Identifying Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the forward planet assembly.

Fig 7: Identifying Forward Planet Assembly
Courtesy of FORD MOTOR CO.

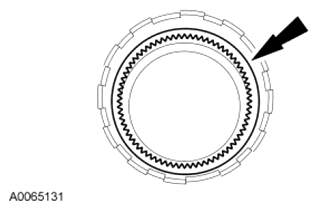

Inspect the low and reverse ring gear.

Fig 8: Identifying Low And Reverse Ring Gear
Courtesy of FORD MOTOR CO.

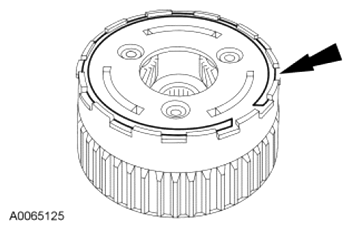

Remove the top retainer of the One-Way Clutch (OWC).

Fig 9: Locating Top Retainer Of One-Way Clutch
Courtesy of FORD MOTOR CO.
Remove the top OWC ring.

Fig 10: Locating Top OWC Ring
Courtesy of FORD MOTOR CO.
Remove the low OWC assembly.

Fig 11: Locating Low OWC Assembly
Courtesy of FORD MOTOR CO.

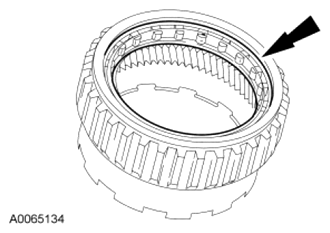

Remove the lower one-way ring.

Fig 12: Locating Lower One-Way Ring
Courtesy of FORD MOTOR CO.
