Pump Assembly: Disassembly

  1. Remove the top portion of the pump.
    Fig 1: Remove/Install Pump Bolts
    G07496357Courtesy of FORD MOTOR CO.
  2. Inspect the lower portion of the pump and gear pocket for nicks, scratches, gouges or wear.

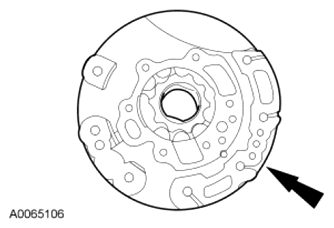

    Fig 2: Identifying Lower Portion Of Pump And Gear Pocket
    G07496358Courtesy of FORD MOTOR CO.
  3. Remove the pump seal.
    Fig 3: Identifying Pump Seal
    G07496359Courtesy of FORD MOTOR CO.
  4. Inspect the upper portion of the pump for nicks, scratches or gouges.

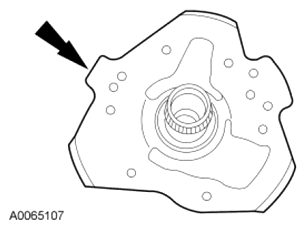

    Fig 4: Identifying Upper Portion Of Pump
    G07496360Courtesy of FORD MOTOR CO.
  5. Inspect the pump gears for nicks, scratches or gouges.

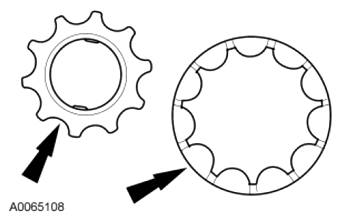

    Fig 5: Identifying Pump Gears
    G07496361Courtesy of FORD MOTOR CO.
