Main Control: Installation

NOTE: The thin longer springs are for the neutral and drive accumulator.

NOTE: Accumulator bore and pistons are matched by depth; some pistons may have steps. Install the pistons in the same bore as removed.

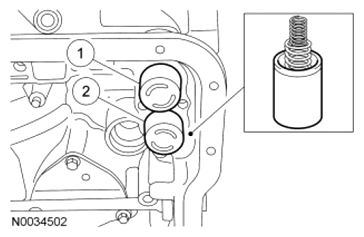

Fig 1: Identifying Accumulator Pistons And Springs

Courtesy of FORD MOTOR CO.

Install the accumulator pistons and springs.
1. Accumulator 1 and 2.
2. Accumulator N and D.

NOTE: Make sure that the manual control valve lever is in the manual control valve or the transaxle will not shift between gear positions correctly.

NOTE: Do not fully tighten the main control valve bolts at this stage.

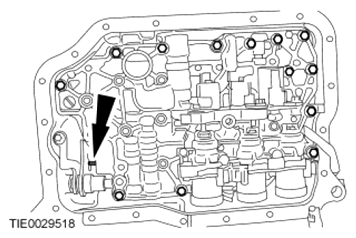

Fig 2: Locating Main Control Valve Body Bolt

Courtesy of FORD MOTOR CO.

Install the main control valve body.
Tighten the main control valve body bolts.
- Tighten the bolts in the sequence shown in illustration.
  - Tighten to 9 Nm (80 lb-in).

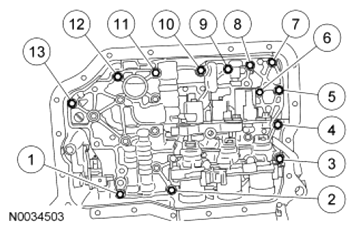

Fig 3: Identifying Main Control Valve Body Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.

NOTE: It is necessary to connect the electrical connectors in the same positions as noted in disassembly. Connector color letters are cast into the solenoid body.

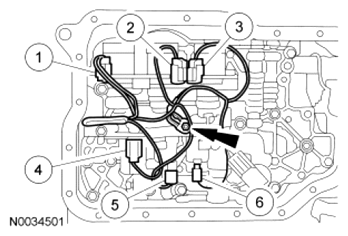

Fig 4: Locating Main Control Wiring Harness Connectors

Courtesy of FORD MOTOR CO.

Install the main control valve wiring harness, connect the electrical connectors and install the main control ground wire bolt.
1. SSC , color N (white).
2. SSE , color G (green).
3. SSD , color L (blue).
4. LPC , color B (black).
5. SSA , color N (neutral).
6. SSB , color B (black).
7. Tighten to 10 Nm (89 lb-in).
Install the transmission fluid filter.

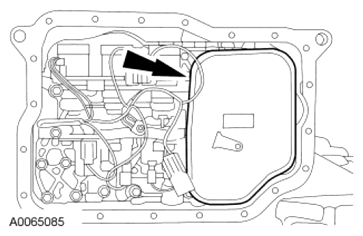

Fig 5: Locating Transmission Fluid Filter
Courtesy of FORD MOTOR CO.
Connect the TFT sensor electrical connector.

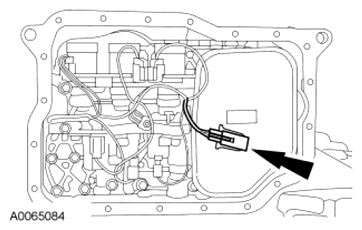

Fig 6: Locating TFT Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Install the transmission fluid pan. For additional information, refer to TRANSMISSION FLUID PAN in this service information.
