Telematics Module

Telematics Module

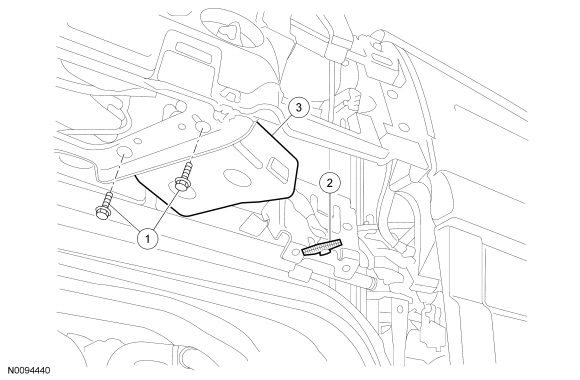

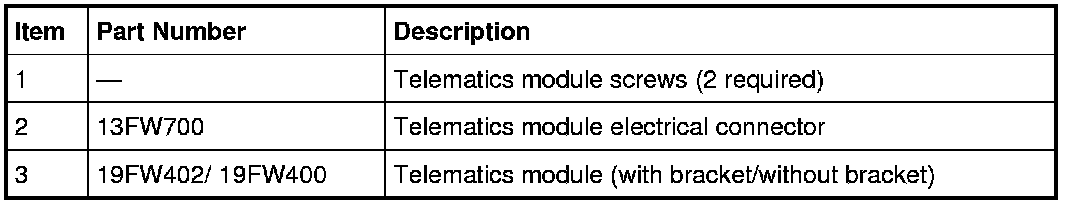

Removal

1. Turn the ignition to OFF.

2. Remove the engine cover.

3. Disconnect the telematics module electrical connector.

4. Remove the 2 screws and the telematics module.

Installation

1. Position the telematics module and install the 2 screws.
- Connect the electrical connector.


2. Install the engine cover.

3. Initialize the telematics module.
1. Wait 5 minutes after the modem-antenna is installed.

2. Turn the ignition to RUN.

3. Wait 10 seconds.

4. Start the vehicle and run the engine for 30 seconds.

5. Turn the ignition to OFF.
