Rear Lamp Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:

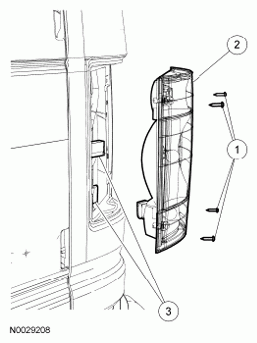

RH side shown in illustration, LH side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N806474 |
Rear lamp assembly screws (4 required) |
| 2 |
13404/13405 |
Rear lamp assembly (RH/LH) |
| 3 |
- |
Rear lamp assembly electrical connectors (part of 14405) |
