Hydraulic Control Unit (HCU): Notes
WARNING: This page is about a different variant/trim than selected.
SPECIAL TOOLS CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1-C (US); CPM-1-C (Canada) |
WSS-M6C62-A or WSS-M6C65-A1 |

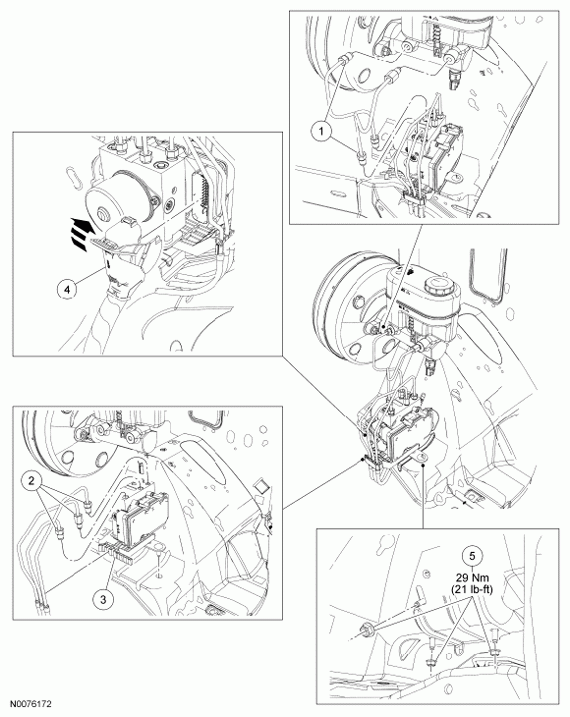

| Item | Part Number | Description |
|---|---|---|
| 1 | 2M022 | Master cylinder brake tube fittings (4 required) |
| 2 | - | Brake caliper-to-Hydraulic Control Unit (HCU) tube fittings (part of 2234) |
| 3 | 2D031 | Brake tube clip |
| 4 | - | ABS module electrical connector (part of 12A581) |
| 5 | W712487 | HCU bracket-to-inner fender well nuts (3 required) |
