Steering Wheel Rotation Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

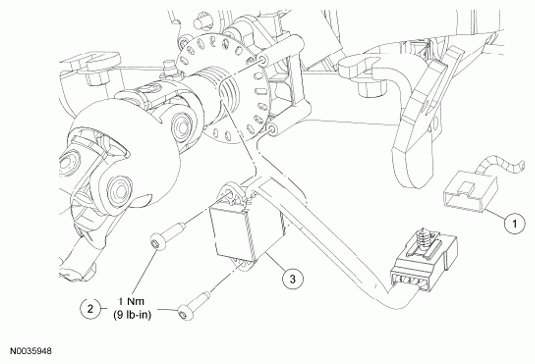

Fig 1: Steering Wheel Rotation Sensor With Torque Specifications
G06137086Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering wheel rotation sensor electrical connector (part of 14401)
2 390345 Steering wheel rotation sensor bolts (2 required)
3 3F818 Steering wheel rotation sensor

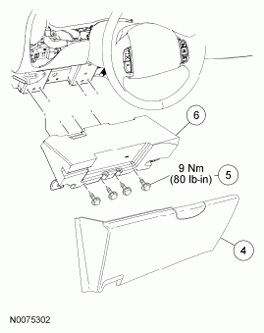

Fig 2: Instrument Panel LH Knee Bolster And Cover With Torque Specifications
G06137087Courtesy of FORD MOTOR CO.
Item Part Number Description
4 1504459 Steering column opening cover
5 N808401 Instrument panel LH knee bolster bolt (4 required)
6 15043C74 Instrument panel LH knee bolster
