Power Steering Pump: Notes
WARNING: This page is about a different variant/trim than selected.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

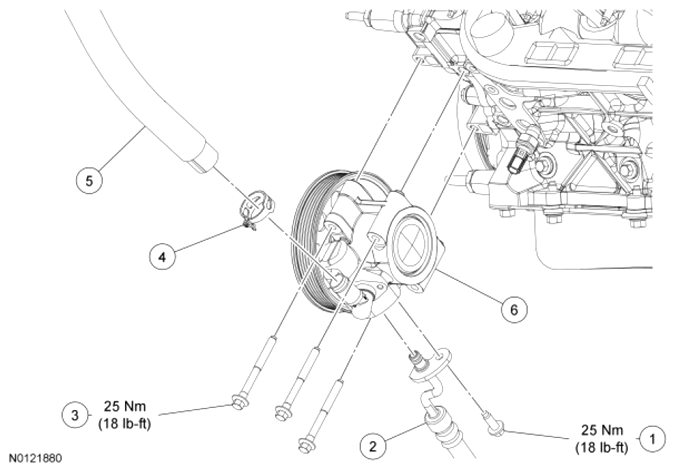

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A719 | Pressure line clamp plate bolt |
| 2 | 3A719 | Pressure line |
| 3 | W714593 | Power steering pump bolt (3 required) |
| 4 | 3C750 | Clamp |
| 5 | 3691 | Supply hose |
| 6 | 3A696 | Power steering pump and pulley assembly |
