Driver Air Bag Module: Notes

WARNING: This page is about a different variant/trim than selected.

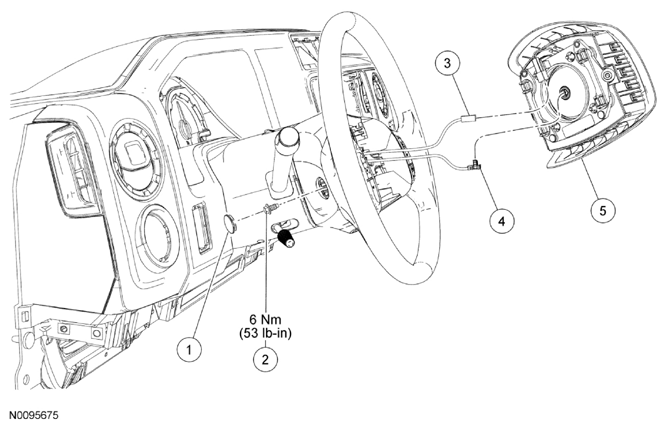

Fig 1: Driver Air Bag Module With Torque Specifications
G07950394Courtesy of FORD MOTOR CO.
Item Part Number Description
1 3L518 Driver air bag module bolt cap (2 required)
2 - Driver air bag module bolt (2 required)
3 - Horn electrical connector (part of 14A664)
4 - Driver air bag module electrical connector (part of 14A664)
5 043B13 Driver air bag module
