Passenger Air Bag Module: Notes

WARNING: This page is about a different variant/trim than selected.

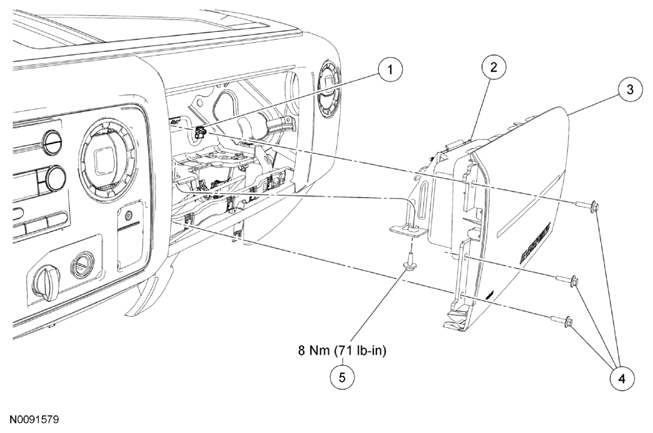

Fig 1: Passenger Air Bag Module With Torque Specifications
G07950398Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Electrical connector (part of 14401)
2 044A74 Passenger air bag module assembly
3 04338 Passenger air bag trim cover
4 W707628 Passenger air bag trim cover bolts (3 required)
5 W505422 Passenger air bag module-to-cross beam bolt (2 required)
