Restraints Control Module (RCM): Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.

NOTE: When installing a new Restraints Control Module (RCM), it is necessary to carry out Programmable Module Installation (PMI). System failure may occur if PMI is not performed. For additional information, refer to MODULE CONFIGURATION .

NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.

NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.

When installing a new RCM, carry out the appropriate steps necessary for the Programmable Module Installation (PMI) procedure. For additional information, refer to MODULE CONFIGURATION .
Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
Position the driver seat to gain access to the RCM.
Disconnect the large RCM electrical connector.
1. Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
2. Pull out and disconnect the large RCM electrical connector.

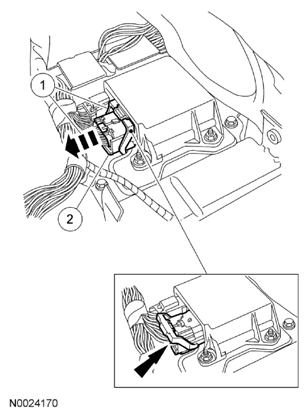

  Fig 1: Disconnecting Large RCM Electrical Connector
  Courtesy of FORD MOTOR CO.
Disconnect the small RCM electrical connector.
Remove the 3 nuts and RCM.
