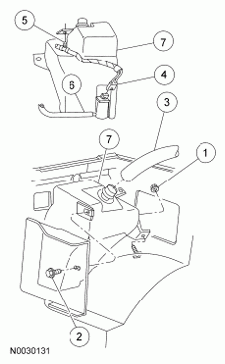

Front Washer System
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Windshield wiper reservoir nut |
| 2 | - | Windshield wiper reservoir bolt |
| 3 | 17A605B | Filler hose |
| 4 | - | Washer pump electrical connector (part of 12A581) |
| 5 | - | Wiring harness locator (part of 12A581) |
| 6 | 17A605 | Windshield washer hose |
| 7 | 17618 | Washer pump and reservoir |
- For additional information, refer to the appropriate procedures in this information .
