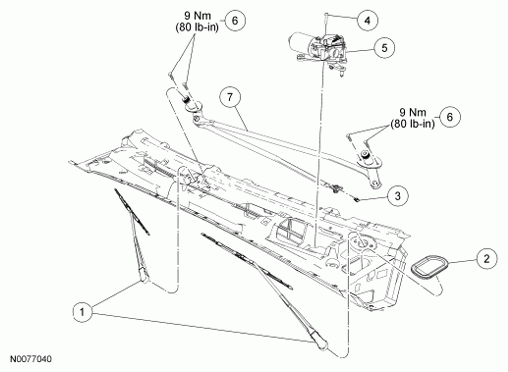

Front Wiper System
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
17526 |
Windshield wiper pivot arms |
| 1 |
17528 |
Windshield wiper blades |
| 2 |
15020A51 |
Access cover |
| 3 |
- |
Retaining clip (part of 17566) |
| 4 |
N504086 |
Bolt (3 required) |
| 5 |
17508 |
Wiper motor |
| 6 |
- |
Bolts (4 required) |
| 7 |
17566 |
Pivot shaft assembly |
