Audio Control Module (ACM): Notes
WARNING: This page is about a different variant/trim than selected.
NOTE:

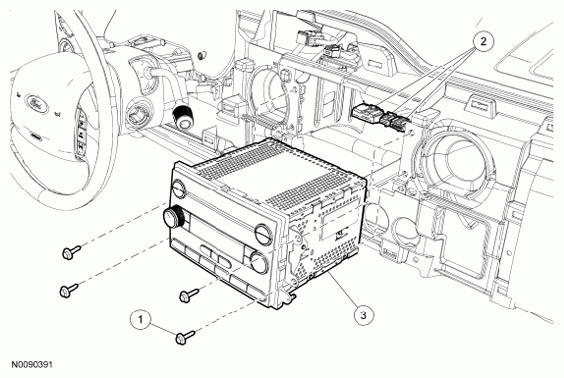

6-CD Audio Front Control Module (ACM) shown in illustration, others similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W707628-S |
Audio Front Control Module (ACM) screws (4 required) |
| 2 |
- |
ACM electrical connectors (part of 14401) |
| 3 |
18806 |
ACM |
