Telematics Module: Notes

WARNING: This page is about a different variant/trim than selected.

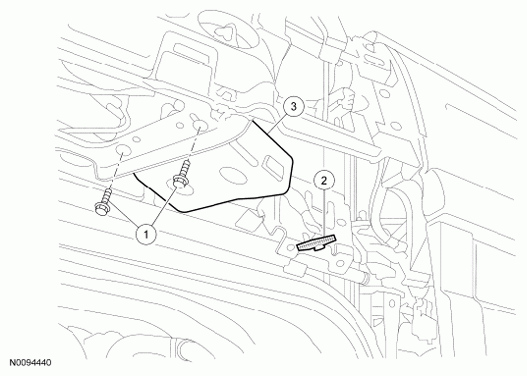

Fig 1: Identifying Telematics Module, Electrical Connector And Screws
G06144040Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Telematics module screws (2 required)
2 13FW700 Telematics module electrical connector
3 19FW402/ 19FW400 Telematics module (with bracket/without bracket)
