Passive Anti-Theft System (PATS) Transceiver: Notes

WARNING: This page is about a different variant/trim than selected.

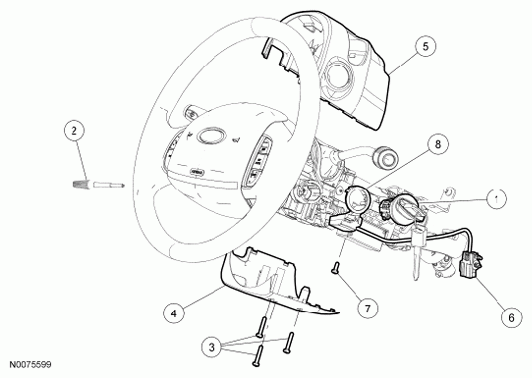

Fig 1: Identifying Passive Anti-Theft System (PATS) Transceiver Components
G06141978Courtesy of FORD MOTOR CO.
Item Part Number Description
1 11582 Ignition lock cylinder
2 - Tilt column handle (if equipped)
3 391727-S424 Steering column shroud screws (3 required)
4 3K512 Lower steering column shroud
5 3530 Upper steering column shroud
6 - Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401)
7 W710836-S424 PATS transceiver screw
8 15607 PATS transceiver
