Master window adjust switch: Schematic

WARNING: This page is about a different variant/trim than selected.

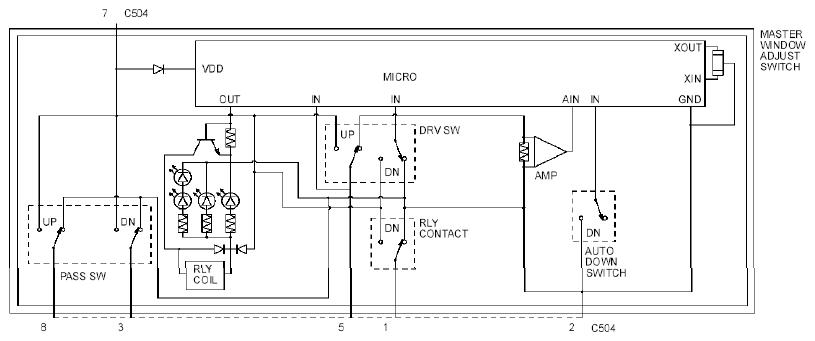

Fig 1: Master Window Adjust Switch Schematic
G07892083Courtesy of FORD MOTOR CO.


Fig 1: Master Window Adjust Switch Schematic
G07892085Courtesy of FORD MOTOR CO.
