Steering Angle Sensor: Service and Repair

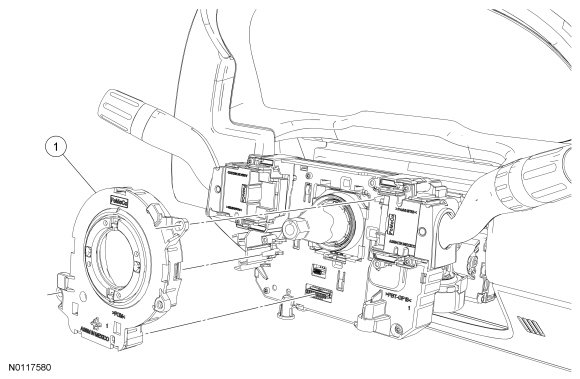

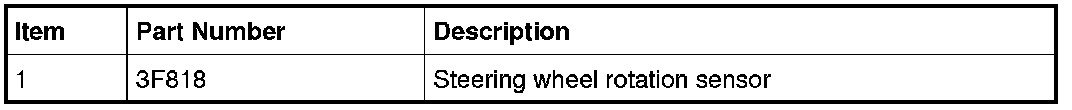

Steering Wheel Rotation Sensor









Removal and Installation

1. Remove the clockspring.

2. Disconnect the steering wheel rotation sensor electrical connector.

3. To install, reverse the removal procedure.
