Blower Motor: Service and Repair

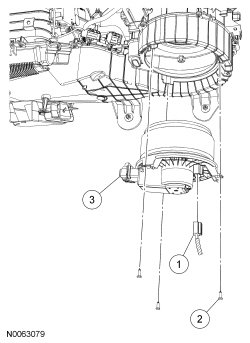

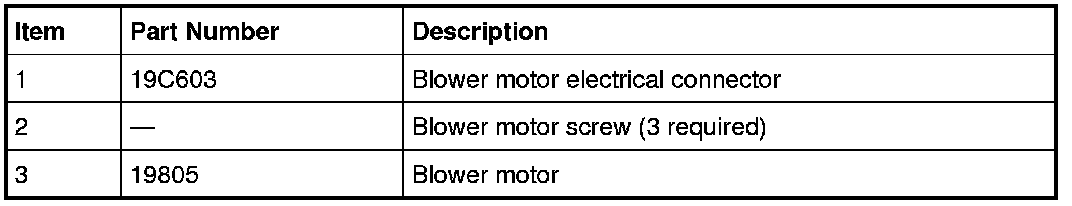

Blower Motor









Removal and Installation

1. Remove the RH lower instrument panel insulator.

2. Disconnect the blower motor electrical connector.

3. Remove the 3 blower motor screws.

4. Remove the blower motor.

5. To install, reverse the removal procedure.
