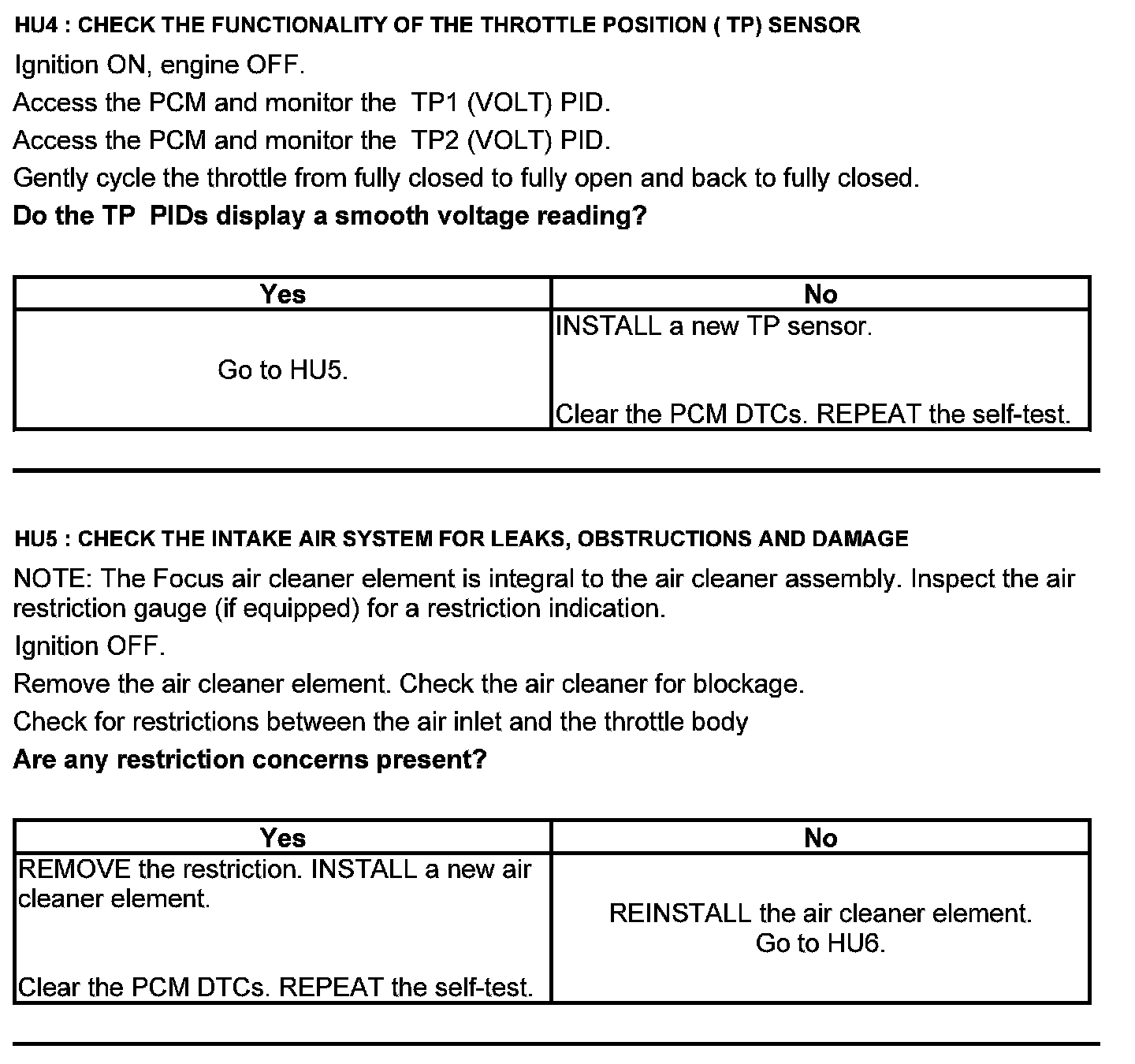

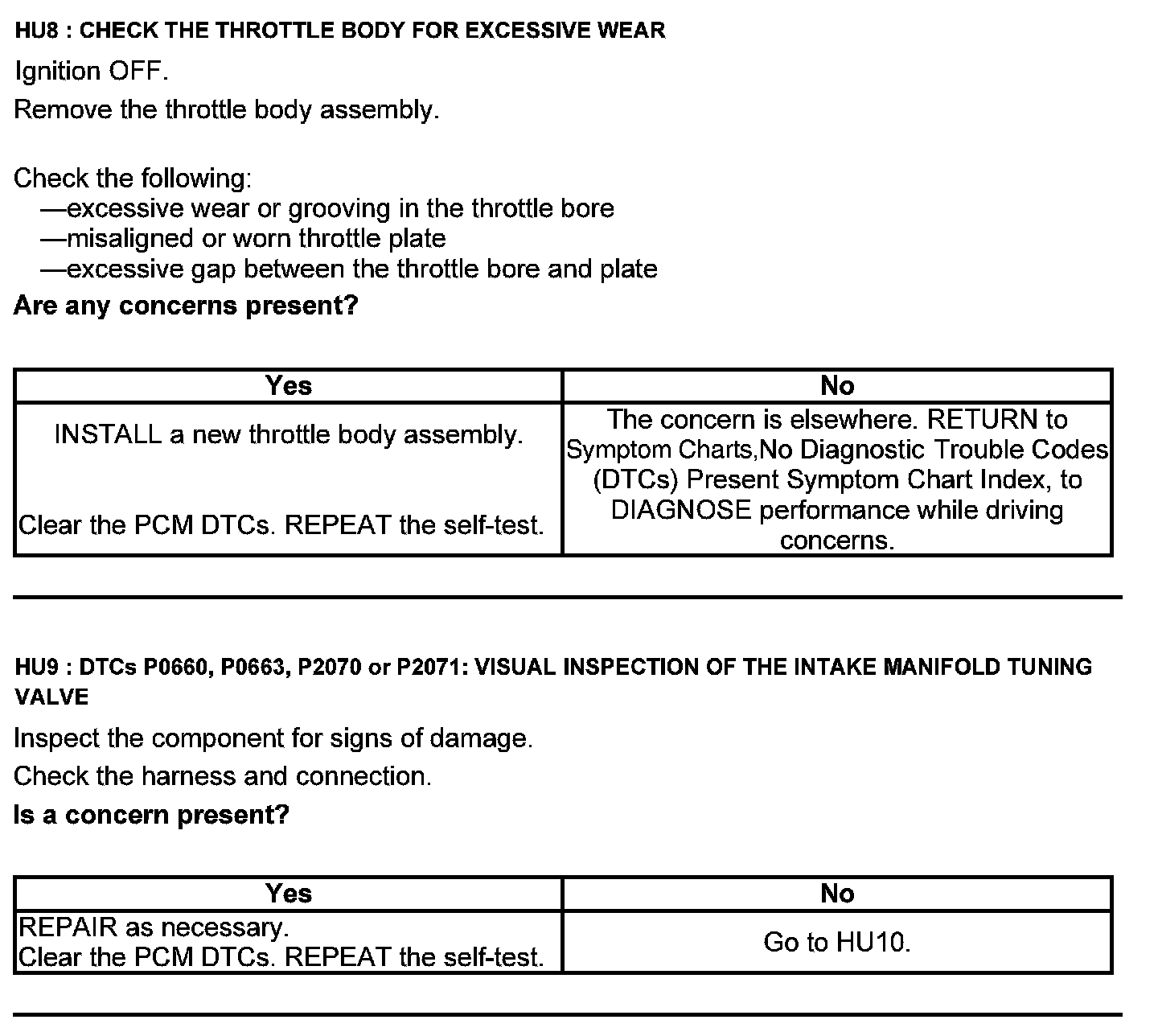

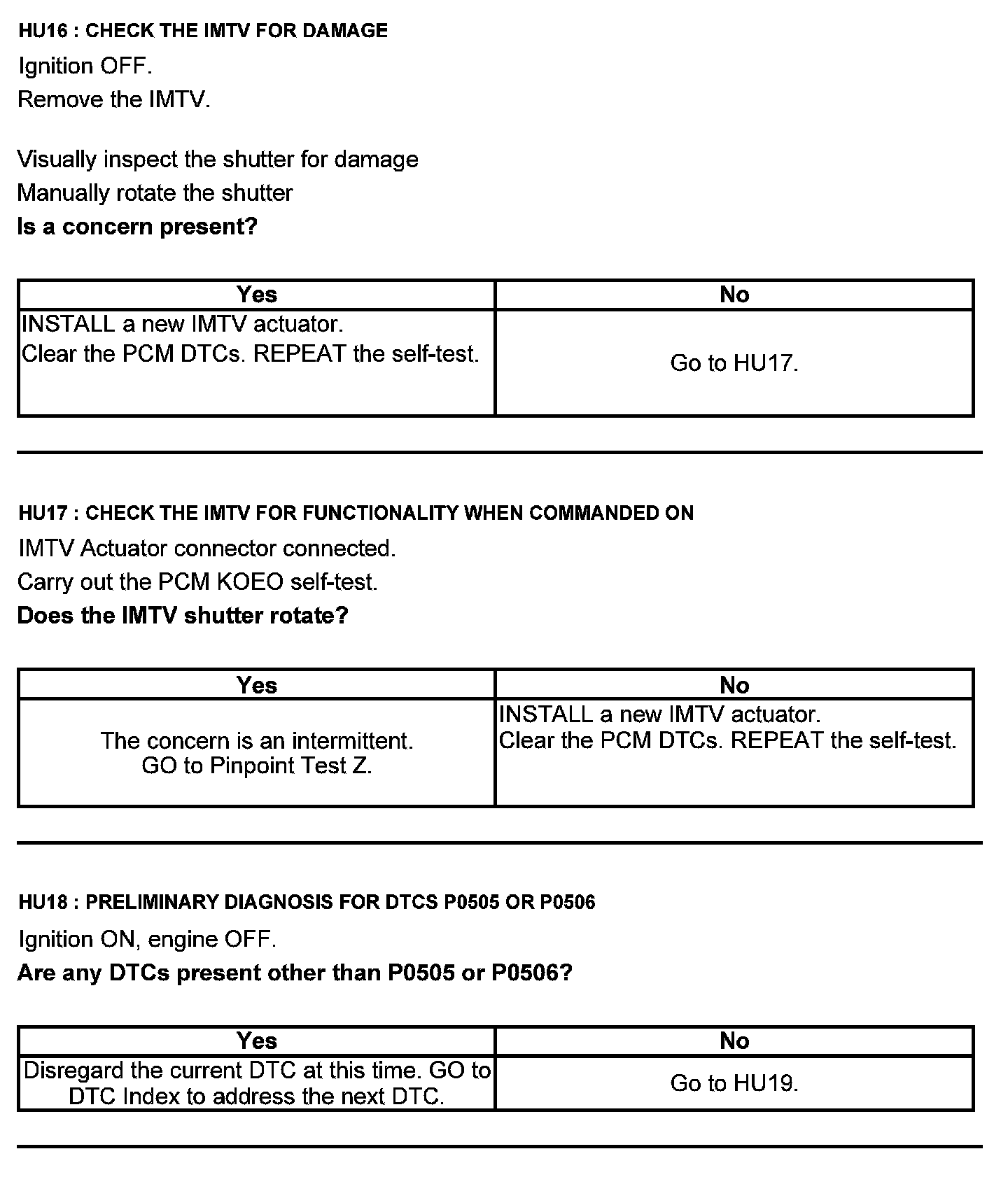

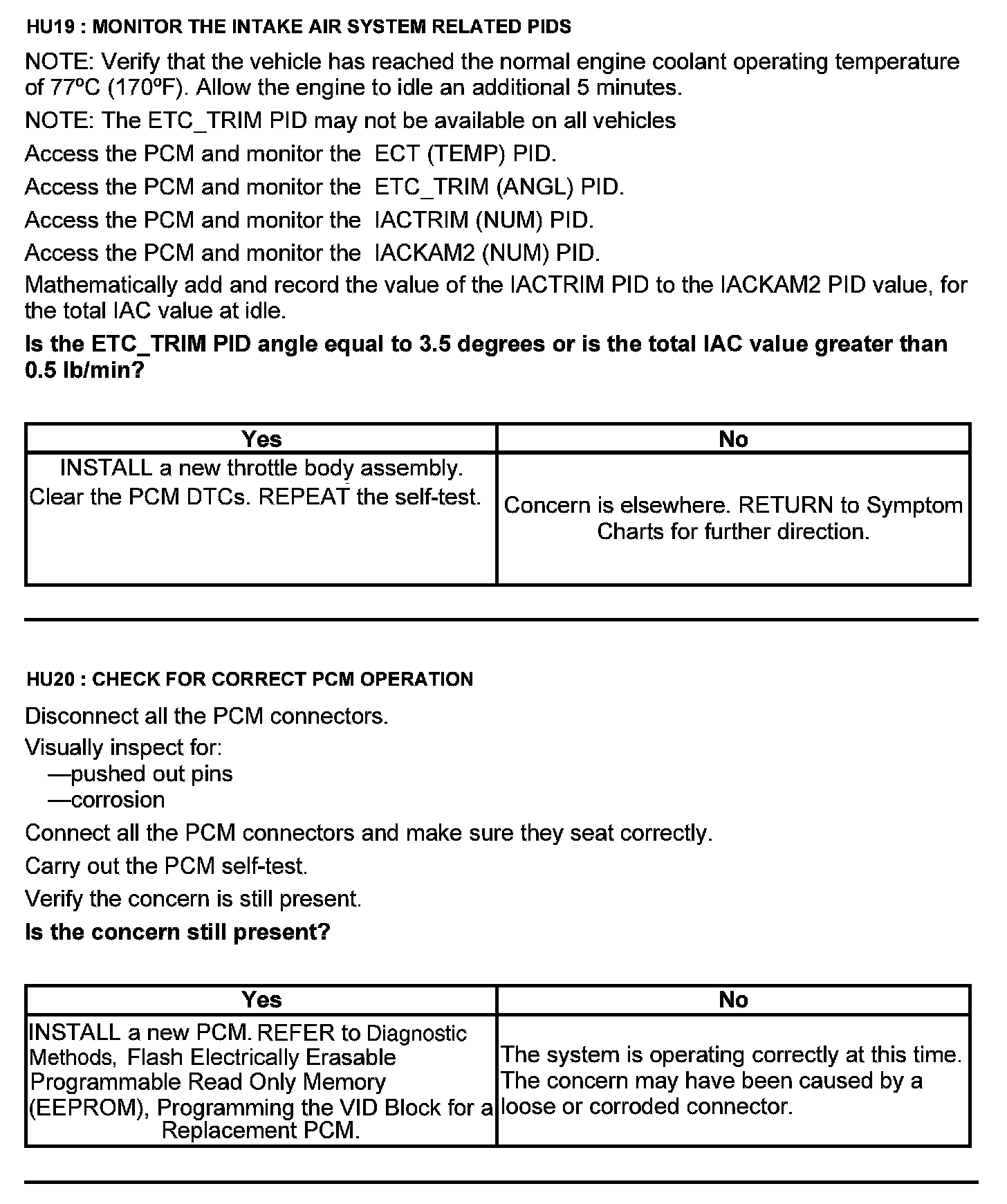

Test HU: Intake Air Systems

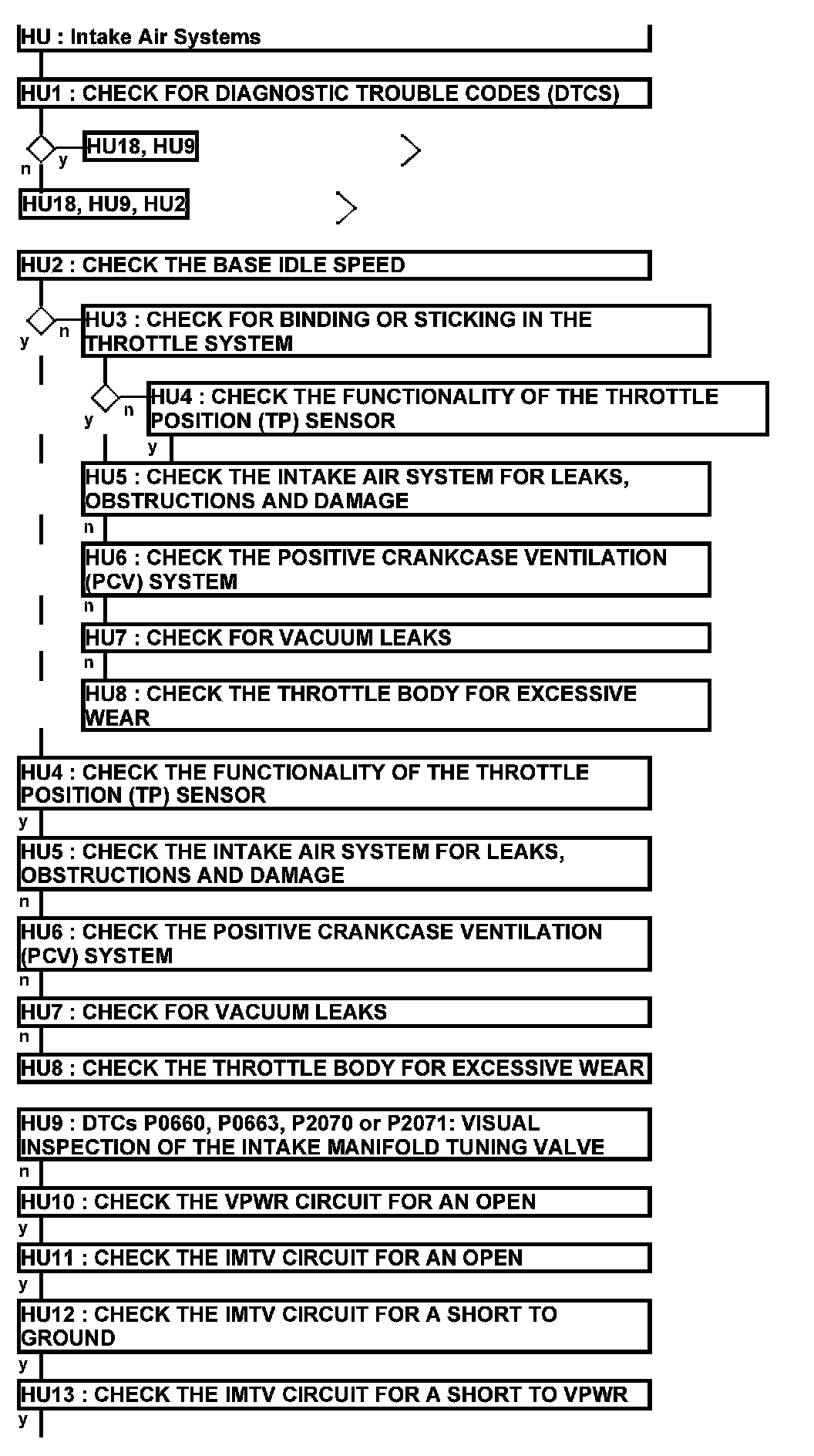

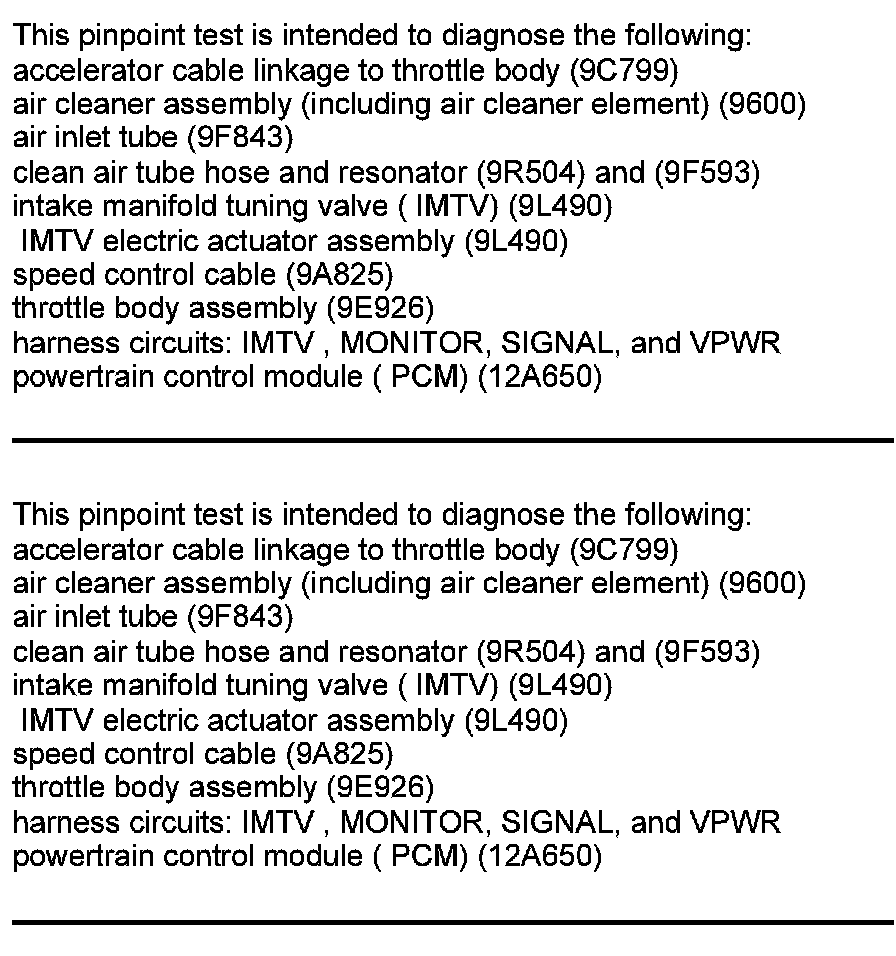

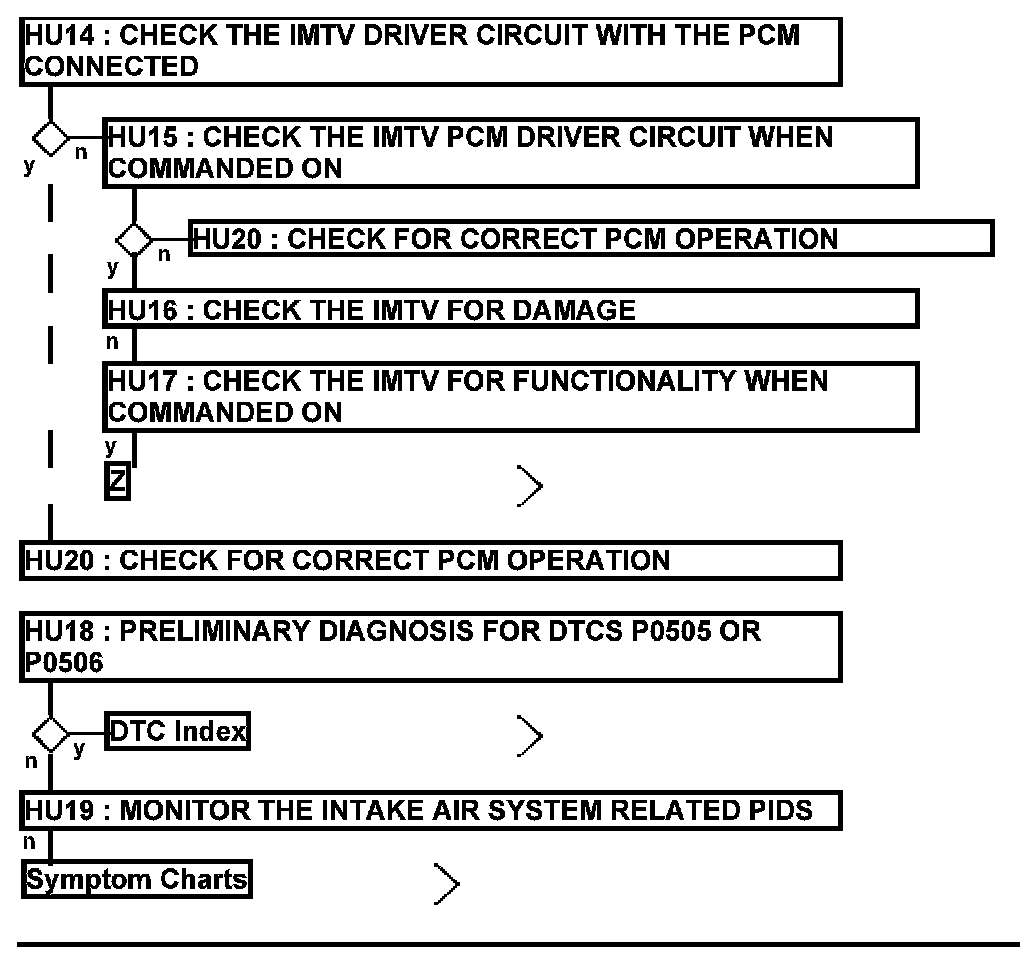

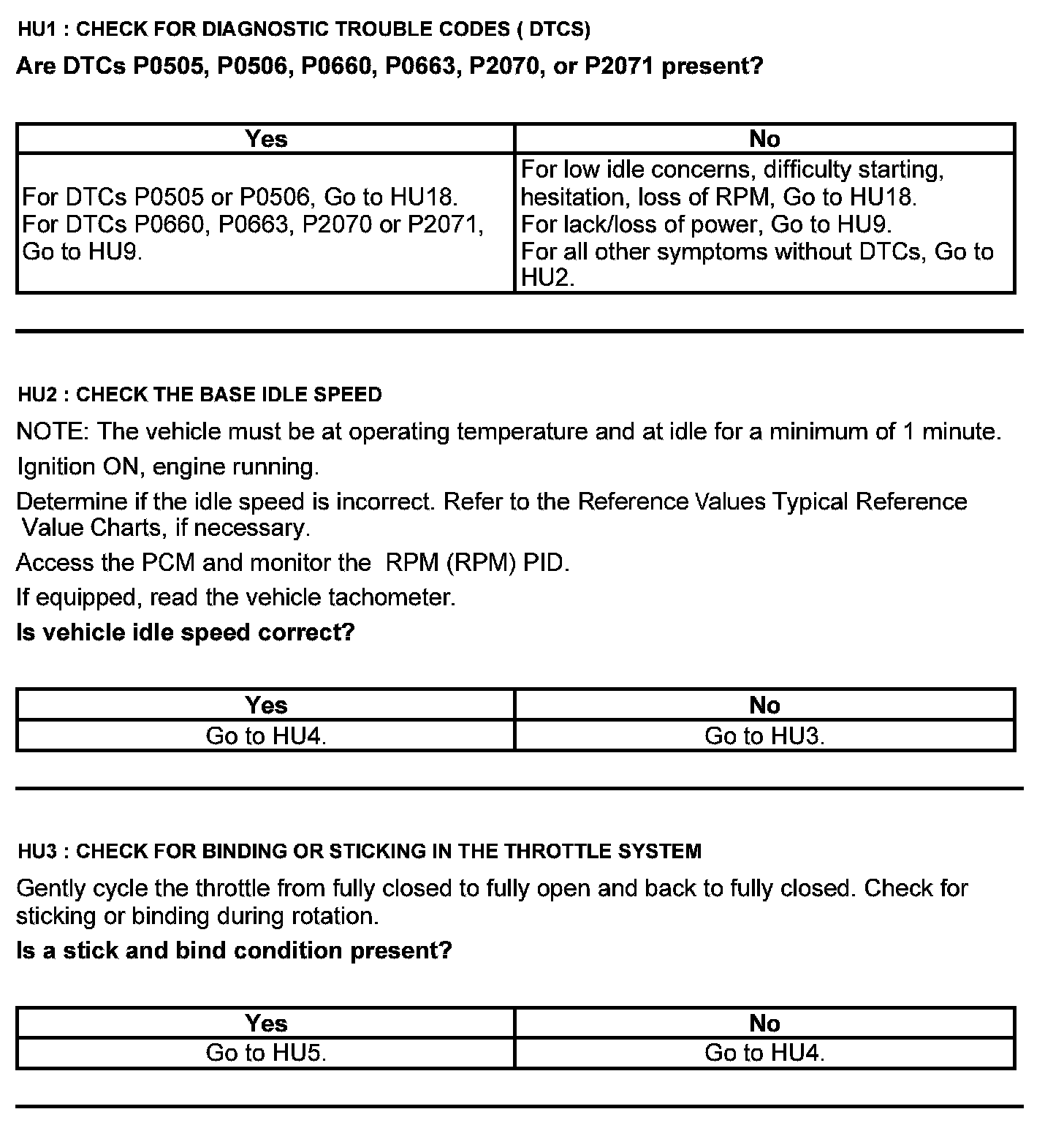

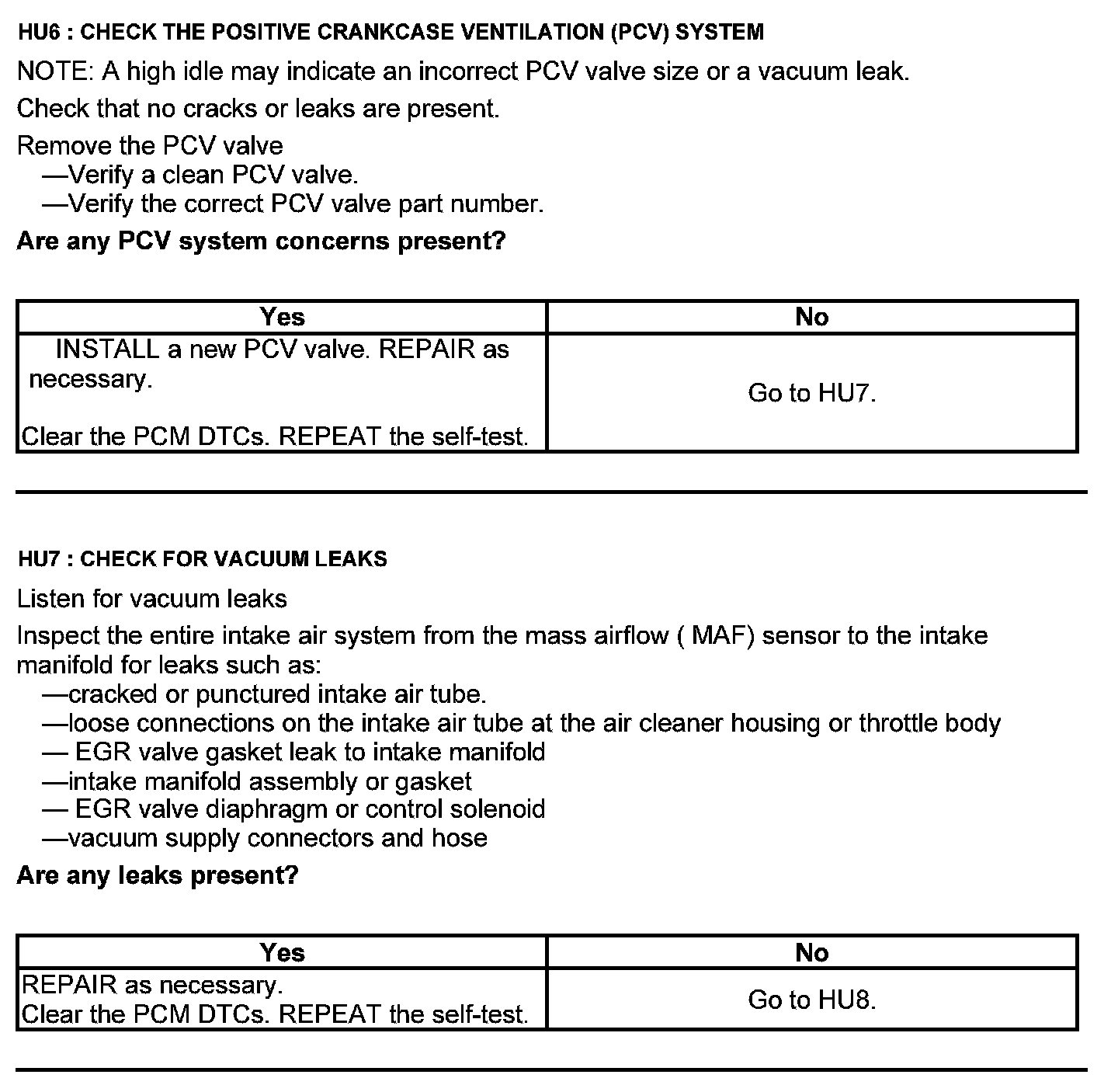

Intake Air Systems

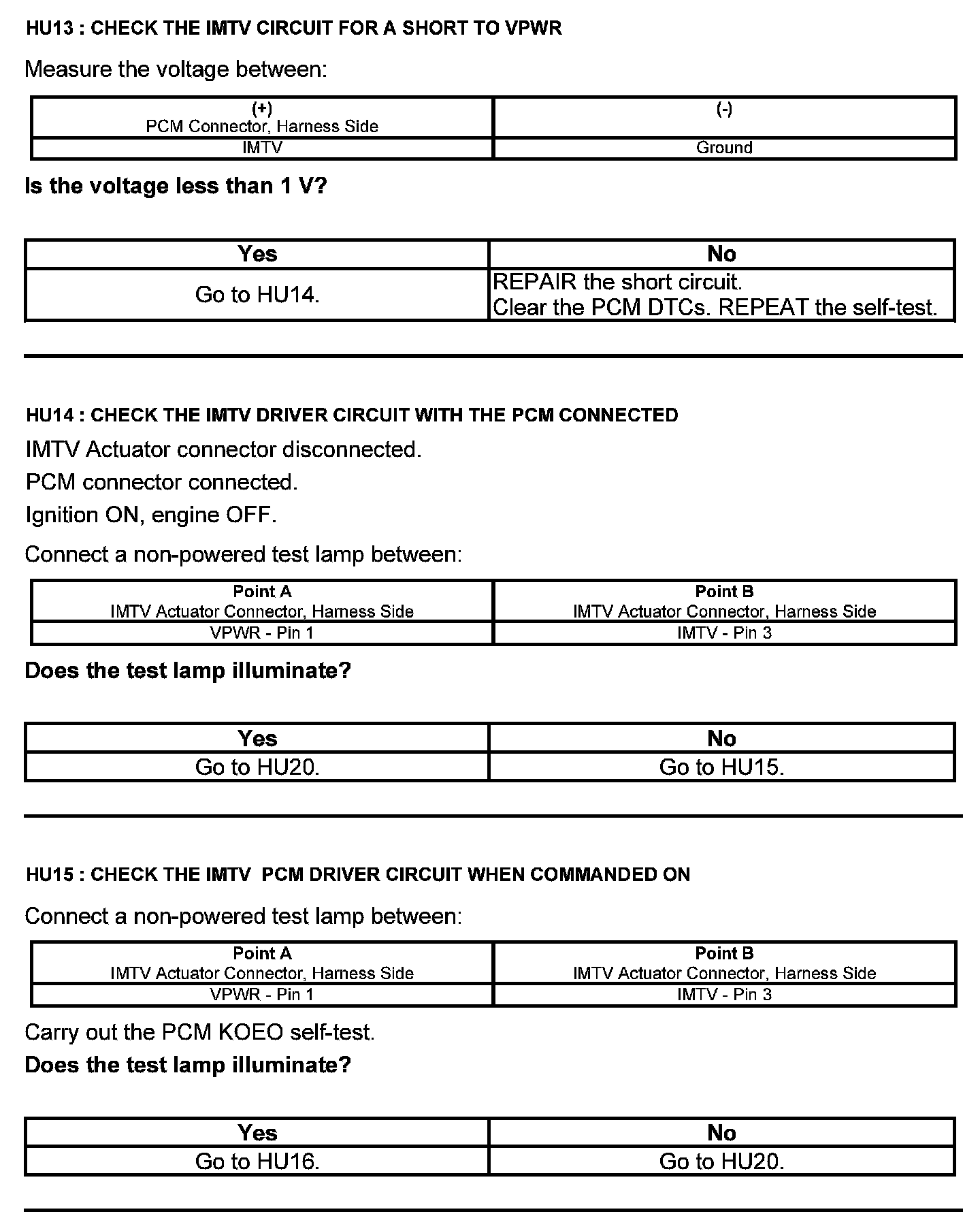

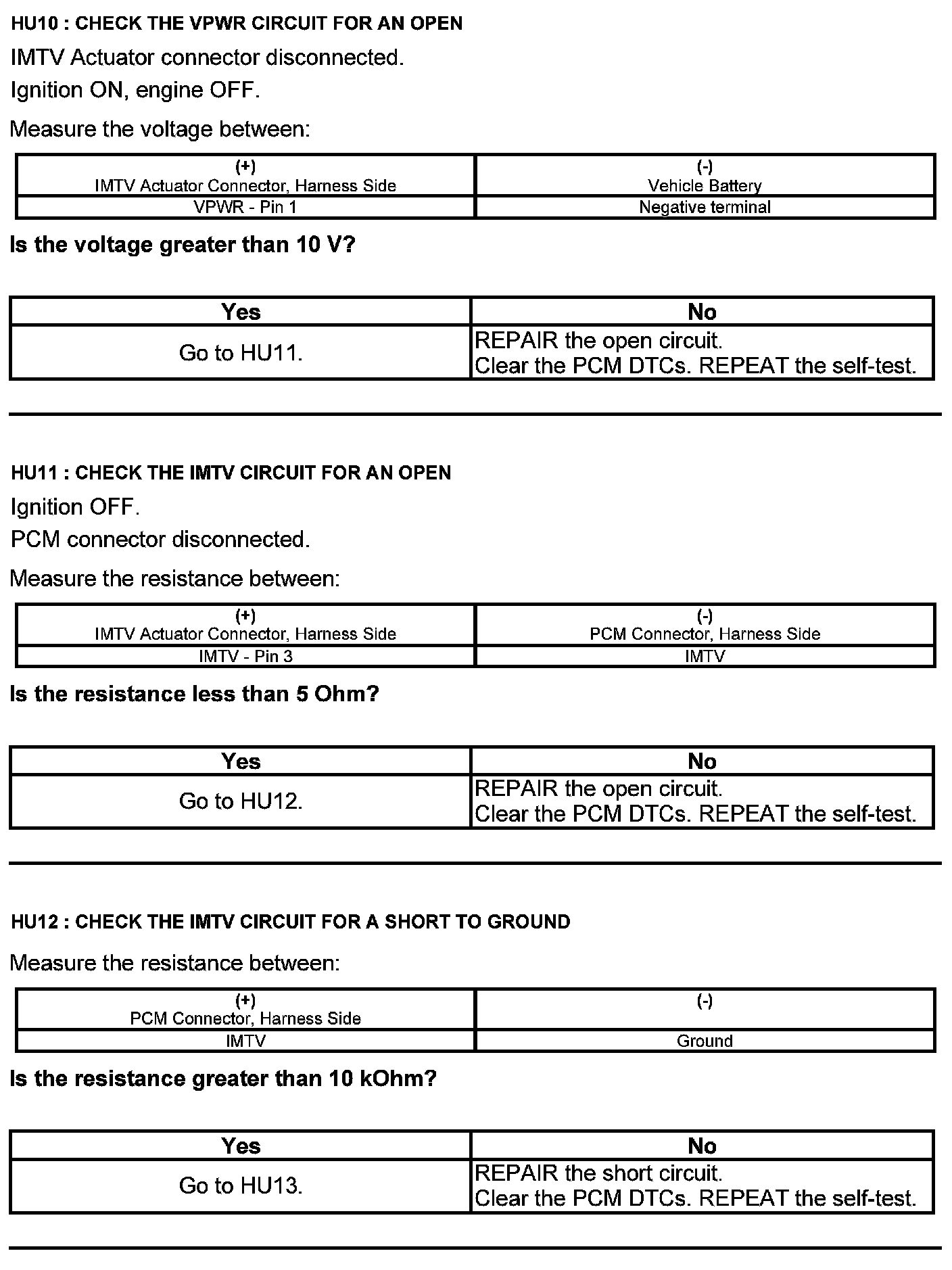

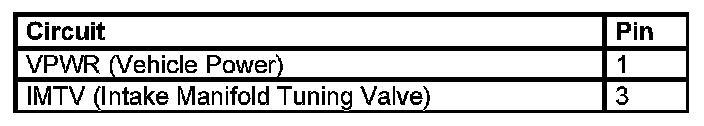

Intake Manifold Tuning Valve (IMTV) Actuator Connector

Harness Side

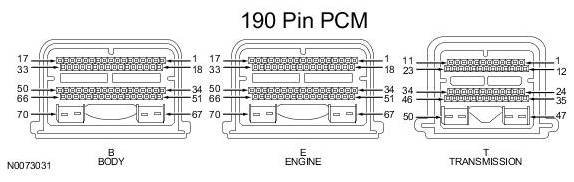

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.

Harness Side
